rf IDEAS RDR-80531BKU Access Control Reader
Full specifications (PDF)

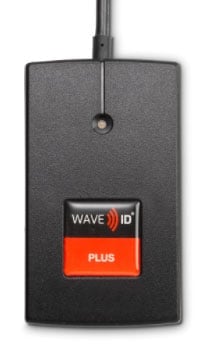

rf IDEAS WAVE ID® Plus Mini Access Control Reader Model Overview
The rf IDEAS WAVE ID® Plus Mini is a compact, dual-frequency card reader designed for identification, authentication and logical-access applications. It supports 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards, including MIFARE® Secure technologies such as DESFire EV1, EV2 and EV3. Four configurable card profiles allow organizations to support multiple credential technologies through a single reader. With USB, USB Virtual COM and RS-232 options, the WAVE ID Plus Mini supports applications such as single sign-on, secure print management, time and attendance, cashless payments and industrial vending.
Key Features
Compact desktop design: Measures only 2.9 inches long, 1.7 inches wide and 0.5 inches high.
Dual-frequency operation: Reads 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards.
Four card configurations: Includes two preset configurations, with all four profiles user-definable.
Multiple operating modes: Supports Keystroke, rf IDEAS SDK, CCID and ASCII configurations.
Flexible connectivity: Available with USB, USB Virtual COM and RS-232 interfaces.
MIFARE Secure support: Supports DESFire EV1, EV2 and EV3, Classic, Plus, Ultralight and Ultralight-C.
Optimized reader performance: Patented 13.56 MHz antenna auto-tuning helps minimize environmental interference.
Adjustable indicators: Includes a quad-state LED and user-selectable beeper volume.
Mobile credential support: Supports compatible credentials through Apple Wallet, Google Wallet and Allegion HCE.
Mounting options: Compatible with Mini Desktop mounting accessories designed to help prevent tampering or removal.
Specifications
Product Series: WAVE ID® Plus Mini
Reader Type: Dual-frequency proximity and contactless card reader
Operating Frequency: 125/132 kHz and 13.56 MHz
Interfaces: USB, USB Virtual COM and RS-232 Serial
Operating Modes: Keystroke, CCID and ASCII
Dimensions: 2.9" L x 1.7" W x 0.5" H (74 x 42 x 13 mm)
Weight: 4.0 oz (113.39 g)
Housing Color: Black
Cable Length: 6' standard; 6" and 16" options available
Indicators: Quad-state LED and adjustable beeper
Power Supply: USB self-powered; select RS-232 models require an external power source
Power Consumption: 65 mA typical, 185 mA maximum
Operating Temperature: -22° to 150°F (-30° to 65°C)
Storage Temperature: -40° to 185°F (-40° to 85°C)
Operating Humidity: 5% to 95% relative humidity, non-condensing
Certifications: FCC, CE Mark, RCM, IC, RoHS and REACH
Compatible Operating Systems: Windows 10 and 11, macOS Monterey and later, Ubuntu Linux 20.04 and later, supported Chromium-based browsers, Android 14 and earlier, and Raspberry Pi
Configuration Tools: rf IDEAS Configuration Utility, Smart Card Manager and Remote Reader Management Tool
Frequently Asked Questions
What card types does the rf IDEAS RDR-80531BKU-C16 support?
The RDR-80531BKU-C16 supports nearly all card types worldwide, including HID Prox, Indala, EM 410x, AWID, CASI-RUSCO, Kantech ioProx, HID iCLASS, ISO 14443A, MIFARE, ISO 15693, NFC, and FeliCa. For a complete list of supported card types specific to your application, visit rfIDEAS.com or contact us today for assistance with your access control requirements.
Is the rf IDEAS RDR-80531BKU-C16 compatible with my operating system?
Yes, the RDR-80531BKU-C16 is compatible with Windows XP, 7, 8, and 10, as well as Linux (Ubuntu and Red Hat), macOS, and Android. This broad compatibility makes it easy to integrate into existing IT infrastructure across warehouse, logistics, and enterprise environments.
What are the physical dimensions and weight of this access control reader?
The RDR-80531BKU-C16 measures 3.4" x 2.0" x 0.6" and weighs 4.0 oz (113.39g). The 16-inch USB cable length (also available in 6' and 6" options) provides flexibility for desktop or surface-mount installations in access control applications.
Can the RDR-80531BKU-C16 operate in warehouse and industrial environments?
Yes, the reader is built for demanding environments with an operating temperature range of -22° to 150°F (-30° to 65°C) and humidity tolerance of 5% to 95% relative humidity (non-condensing). These specifications make it suitable for warehouse, manufacturing, and logistics facilities where temperature and humidity fluctuations are common.
What interface options and power requirements does this reader have?
The RDR-80531BKU-C16 features USB and Serial RS232 interfaces and is USB self-powered, consuming 70 mA typical and 150 mA maximum. This eliminates the need for external power supplies and simplifies deployment in access control and single sign-on applications.
Does the rf IDEAS RDR-80531BKU-C16 include SDK support for custom applications?
Yes, an SDK is available for writing custom applications to the reader, allowing you to develop tailored solutions for your specific access control, time and attendance, or secure print management needs. We offer comprehensive support and technical resources—contact us today to discuss your development requirements.
