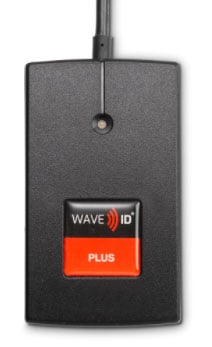

rf IDEAS RDR-80031BKU Access Control Reader

The rf IDEAS WAVE ID® Plus Mini is a compact, dual-frequency card reader designed for identification, authentication and logical-access applications. It supports 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards, including MIFARE® Secure technologies such as DESFire EV1, EV2 and EV3. Four configurable card profiles allow organizations to support multiple credential technologies through a single reader. With USB, USB Virtual COM and RS-232 options, the WAVE ID Plus Mini supports applications such as single sign-on, secure print management, time and attendance, cashless payments and industrial vending.

Key Features

• Compact desktop design: Measures only 2.9 inches long, 1.7 inches wide and 0.5 inches high.

• Dual-frequency operation: Reads 125/132 kHz proximity credentials and 13.56 MHz contactless smart cards.

• Four card configurations: Includes two preset configurations, with all four profiles user-definable.

• Multiple operating modes: Supports Keystroke, rf IDEAS SDK, CCID and ASCII configurations.

• Flexible connectivity: Available with USB, USB Virtual COM and RS-232 interfaces.

• MIFARE Secure support: Supports DESFire EV1, EV2 and EV3, Classic, Plus, Ultralight and Ultralight-C.

• Optimized reader performance: Patented 13.56 MHz antenna auto-tuning helps minimize environmental interference.

• Adjustable indicators: Includes a quad-state LED and user-selectable beeper volume.

• Mobile credential support: Supports compatible credentials through Apple Wallet, Google Wallet and Allegion HCE.

• Mounting options: Compatible with Mini Desktop mounting accessories designed to help prevent tampering or removal.

Specifications

• Product Series: WAVE ID® Plus Mini

• Reader Type: Dual-frequency proximity and contactless card reader

• Operating Frequency: 125/132 kHz and 13.56 MHz

• Interfaces: USB, USB Virtual COM and RS-232 Serial

• Operating Modes: Keystroke, CCID and ASCII

• Dimensions: 2.9" L x 1.7" W x 0.5" H (74 x 42 x 13 mm)

• Weight: 4.0 oz (113.39 g)

• Housing Color: Black

• Cable Length: 6' standard; 6" and 16" options available

• Indicators: Quad-state LED and adjustable beeper

• Power Supply: USB self-powered; select RS-232 models require an external power source

• Power Consumption: 65 mA typical, 185 mA maximum

• Operating Temperature: -22° to 150°F (-30° to 65°C)

• Storage Temperature: -40° to 185°F (-40° to 85°C)

• Operating Humidity: 5% to 95% relative humidity, non-condensing

• Certifications: FCC, CE Mark, RCM, IC, RoHS and REACH

• Compatible Operating Systems: Windows 10 and 11, macOS Monterey and later, Ubuntu Linux 20.04 and later, supported Chromium-based browsers, Android 14 and earlier, and Raspberry Pi

• Configuration Tools: rf IDEAS Configuration Utility, Smart Card Manager and Remote Reader Management Tool
