rf IDEAS RDR-7585AKU Access Control Reader

rf IDEAS WAVE ID Playback - Access Control Readers, rf IDEAS WAVE ID Playback, MIFARE Black USB Reader
$179.71
In Stock
Add to Quote

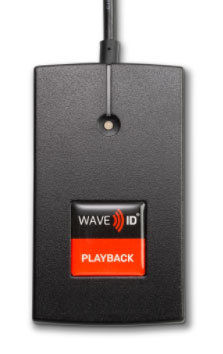

rf IDEAS WAVE ID Playback Access Control Reader Model Overview
The rf IDEAS WAVE ID Playback makes it simple to increase the value and cost of an existing badge or control system. This multi-application rf IDEAS solution connects contactless cards to current applications and systems without requiring the systems to be changed or updated. The rf IDEAS WAVE ID Playback is simple to set up and requires no upgrades, software modifications, pilot testing, or training. Users may alter the locations being read on the contactless card without worrying about incompatibility concerns or needing technical help. WAVE ID Playback may also be set up to read data from the card and write it to the card using the WAVE ID Writer.

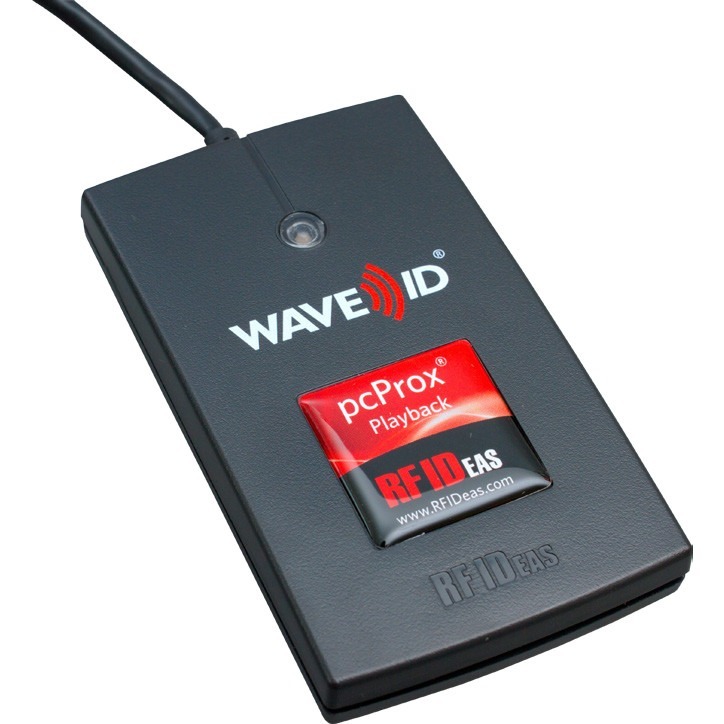

rf IDEAS RDR-7585AKU Access Control Reader Overview

pcProx 13.56 MHz products meet a variety of needs in multiple situations. These products leverage current HID iClass and NXP MIFARE badge investments and existing control systems while expanding technologies and applications with a single badge solution.

The pcProx Playback interfaces contactless cards to existing applications and systems without the need to change or update these systems. There is no need to deploy software. The plug-and-play pcProx Playback reader delivers user data from the contactless card to the desired application or machine. Data may be written to the card using the pcProx Writer. In many cases, the Playback reader can be configured to read data already on the card. The reader is instantaneously configurable, allowing users to change the location being read on the contactless card. There is no need for pilot tests, training, software updates, technical support, licenses or the hassle of incompatibilities since no software is deployed. This multi-application reader delivers strong benefits to the user: easy plug-and-play, contactless operation, and cost savings.

Technical Information
Connectivity Technology:
Cable
Media Supported:
Contactless
Maximum Operating Range:
4"
Features:
  • No software required on server or client
    Utilizes a plug-n-play USB, RS-232, or Wiegand output.
  • Multi-application solution
    Allows for several applications to be stored on a single contactless credential.
  • Security
    Contactless cards offer unique features such as cryptographic data storage, mutual authentication, secure reading/writing of data, and user defined access keys.
  • pcProx Playback USB seamlessly interfaces with any system or existing software
    Playback reads and sends back as keystrokes. User data provides seamless integration, which can be used for a one or two-factor logon application.
  • pcProx Playback RS-232 reader easily interfaces to existing software, PLCs, point-of-sale terminals and other equipment
    The Playback Reader sends data as ASCII characters.
  • pcProx Playback Wiegand easily outputs data to any device accepting Wiegand data
  • Platform independent and versatile
    Supports any operating system with USB, Windows® 2000/XP, Citrix®, UNIX®, Linux, Vista, Macintosh, thin clients, and more.
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Ethernet
Physical Characteristics
Product Color:
Black
Height:
0.6"
Width:
2"
Depth:
3.4"
Weight (Approximate):
4 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0724627341611
UPC: 724627341611
EAN: 0724627341611
UNSPSC: 43201815
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The rf IDEAS RDR-7585AKU Access Control Reader is also known as RDR-7585AKU
