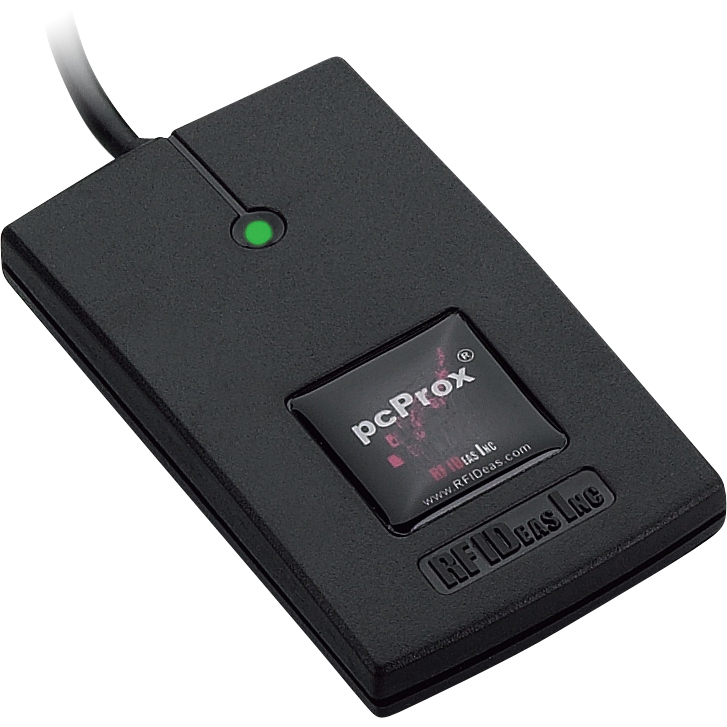

RF IDeas RDR-6081AK2 Access Control Card Reader

RF IDeas pcProx Enroll - RF IDeas pcProx RDR-6081AK2 Card Reader Access Device - Proximity - Serial
  • With its card reading capability this card reader access device provides access control and security assurance
  • The proximity technology delivers powerful and heightened security with convenience, affordability, and reliability
Read More
$209.00
Temporarily out of stock; available to order

Full specifications (PDF)

Featuring plug-n-play functionality
RF-IDeas pcProx Enroll card readers are designed for customers seeking to leverage their existing card system for applications beyond physical security. Engineered to work with nearly all proximity technologies, pcProx readers provide error-free identification for over 300 million physical access proximity cards worldwide. Featuring plug-n-play functionality, no required software, and embedded configurable flash memory, the pcProx Enroll reader is ready to integrate with nearly all operating systems, applications, and embedded controllers. The USB model emulates a keyboard and keystrokes the card's ID and/or site code to the cursor's location on the screen. The pcProx Enroll reader can be configured to add keystrokes before and after the card's data. The serial version, available in RS-232, Ethernet, or USB Virtual Com, delivers the card's data in ASCII.
RF IDeas RDR-6081AK2 Overview

The family of pcProx proximity card readers eliminates the need for manual entry providing error-free identification. pcProx is compatible with over 300 million physical access proximity cards. This reader allows users to use their building access card for other forms of identification and security throughout their workplace. This product is available either embedded in a keyboard or the standard wedge type housing. The plug-n-play reader comes with flash memory, allowing the user to quickly configure the output to meet the user's needs.

Protect Your Product

Full specifications (PDF)

Technical Information
Identification Method:
Proximity
Controls/Indicators
Indicators & Controls:
  • LED Indicator
  • Tri-state LED
  • Beeper
Interfaces/Ports
Serial:
Yes
Physical Characteristics
Height:
0.9"
Width:
2.5"
Depth:
4.2"
Weight (Approximate):
7.20 oz
Miscellaneous
Additional Information:
  • PC/LAN access control
  • Application log-on
  • Employee identification (multi-function printers MFP, embedded devices, PCs etc)
  • Time and attendance
  • Form filler to existing software applications
  • PLC and embedded controllers
  • Hoteling, meeting attendance, vistor management (using wall-switch housing)
  • Typical Maximum read range: 1.0" - 3.0" (2.5 - 7.6cm) dependent upon proximity card type and environmental conditions
Certifications & Standards:
  • CE
  • C-Tick
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 46171600
