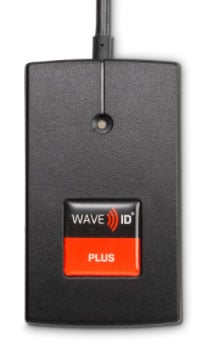

rf IDEAS OEM-805N1AKU Access Control Reader

The rf IDEAS WAVE ID® Plus Dual-Frequency Card Reader is the ultimate solution for organizations seeking to streamline access control and credential management. This robust reader supports a variety of card types and configurations, making it an ideal choice for dynamic environments. With its auto-tuning feature, the WAVE ID Plus optimizes performance across different settings and offers user-selectable volume control for alerts. Designed to integrate seamlessly into existing systems, it simplifies login processes, enhancing efficiency while maintaining security.
Key Features

• Four ID Card Configurations: Two pre-set and all four user definable
• Auto-Tuning: For optimized performance across various environments
• User-Selectable Volume Control: Including beeper on/off settings
• Robust Compatibility: Works with proximity, contactless, and magnetic swipe cards
• Plug-and-Play Functionality: No software needed for integration

Specifications

• Model Series: RDR-805x1AKx, RDR-80582AKU, RDR-800x1AKx, RDR-80082AKU, RDR-8X581AKU, RDR-8X582AKU, RDR-8X081AKU, RDR-8X082AKU
• Operating Frequency: 125/132 kHz and 13.56 MHz
• Interface: USB
• Dimensions: 3.6" x 2.1" x 0.7"
• Weight: 4.0 ounces (113.39g)
• Housing Color: Black
• Cable Length: 6' standard; 6" and 16" lengths available
• Operating Temperature Range: -22° to 150°F
• Operating Humidity Range: 5% to 95% relative humidity, non-condensing
• Storage Temperature Range: -40° to 185°F
• Power Supply: USB self-powered; some RS-232 models require external power source
• Certifications: FCC, CE Mark, RCM, IC, UL Environmental
