Device Supported:
IR Illuminator

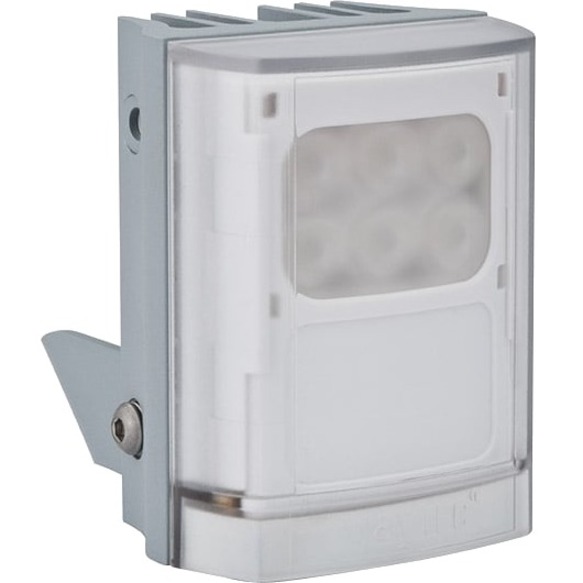

Raytec VAR2-W2-1 Infrared Illuminator
Part Number:
VAR2-W2-1
Model:
Parts
Technical Information
Physical Characteristics
Color Family:
Dual Color
Product Color:
- White
- Silver
Color Details:
- White - Light
Height:
3"
Width:
3.9"
Depth:
2.5"
Weight (Approximate):
1.32 lb
Miscellaneous
Package Contents:
- Short Range White-Light Illuminator
- U Bracket
Additional Information:
- Max Distance: 60m (197ft)
- Angles and Max Distances:
- 10°x10° - 60m (197ft)
- 35°x10° - 40m (131ft)
- 60°x25° - 25m (82ft)
- 80°x30° - 20m (66ft)
- 120°x50° - 12m (38ft)
- Input: 12-24V AC/DC
- Beam Shape: Elliptical with HRT
- (Hot Spot Reduction Technology)
- Beam Angle System: VARIO interchangeable lens system
- Consumption:11W
- LED Type: Platinum Elite SMT LEDs
- Number of LEDs: 6
- Power Output (Luminous Flux):932lm per luminaire
- Wavelength: White-Light
Country of Origin:
United Kingdom
Item Numbers
GTIN:
0657531666290
UPC:
657531666290
EAN:
0657531666290
UNSPSC:
46171600
Get help from a Barcoding Expert!
The Raytec VAR2-W2-1 Infrared Illuminator is also known as
RAY-VAR2W21
