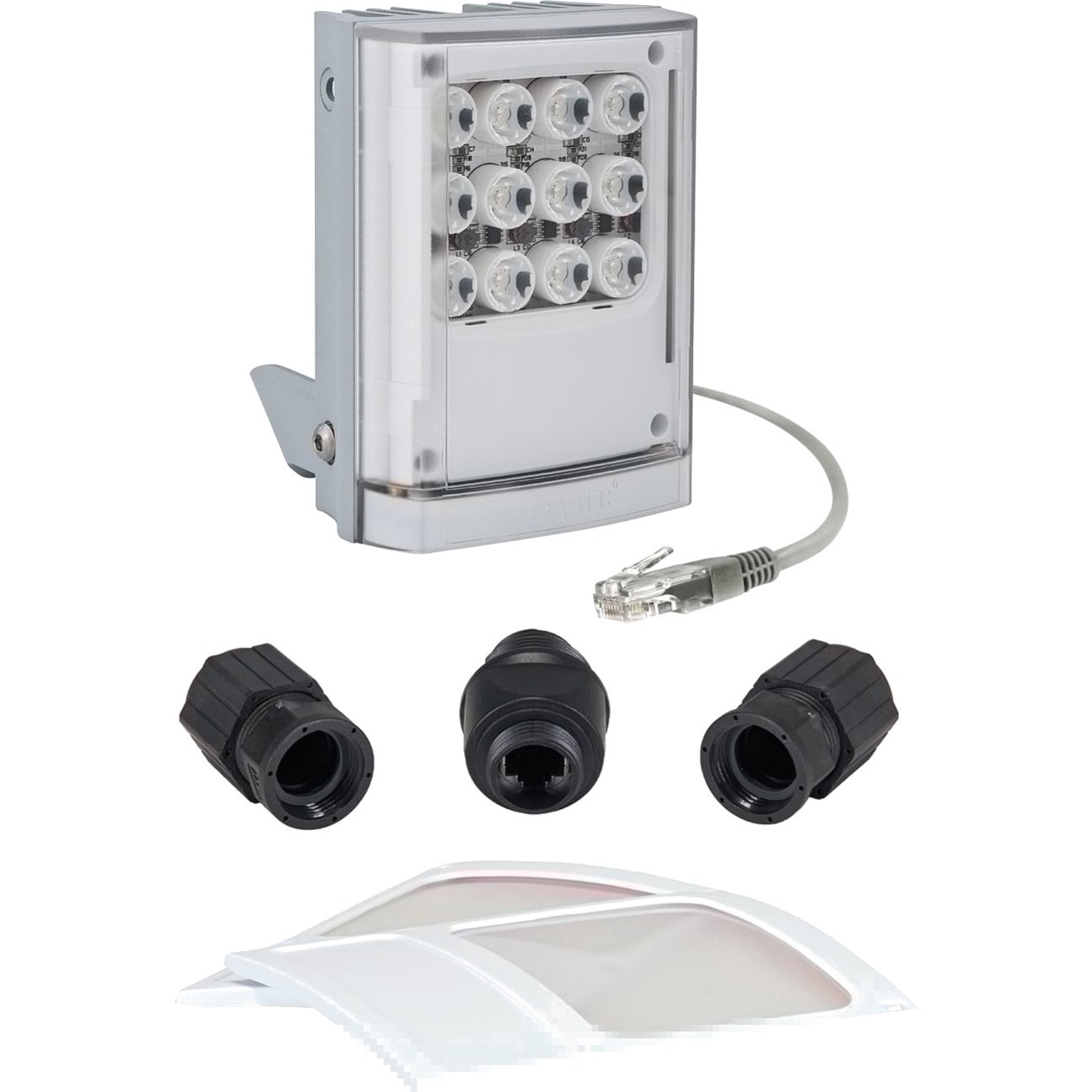

Raytec VAR2-POE-W4-1 Infrared Illuminator

Raytec - Raytec VAR2-PoE-w4-1 Medium Range White-Light PoE Illuminator - Interchangeable Lens, Hot-spot Reduction Technology (HRT), Night Vision, High Definition Lighting, Plug-in Installation, PoE, Platinum Elite SMT LED Technology, Advanced Security Setting, Green Technology, LED Indicator, LED Illumination, ... - Silver

Need a different version? See all Raytec Parts Accessories

$645.92
Add to Quote
Add to My Shopping List Add to Compare
Raytec VAR2-POE-W4-1 Infrared Illuminator
Raytec VAR2-POE-W4-1 Infrared Illuminator
Raytec VAR2-POE-W4-1 Infrared Illuminator
Technical Information
Device Supported:
  • Network Camera
  • Video Surveillance System
  • Smart Light System
Features:
  • Interchangeable Lens
  • Hot-spot Reduction Technology (HRT)
  • Night Vision
  • High Definition Lighting
  • Plug-in Installation
  • PoE
  • Platinum Elite SMT LED Technology
  • Advanced Security Setting
  • Green Technology
  • LED Indicator
  • LED Illumination
  • Automatic On/Off
  • Energy Saving
  • Even Illumination
Physical Characteristics
Product Color:
Silver
Height:
5"
Width:
4"
Depth:
2.5"
Weight (Approximate):
2.10 lb
Miscellaneous
Additional Information:
Illuminator:
  • Total Lumens 1863lm per luminaire
  • Total Distance 110m (361ft)
  • Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50° Input PoE+ IEEE 802.3at or 24V DC (24V DC
  • Input available on Premium versions only)
  • Consumption 25W
  • Beam Shape Elliptical with HRT (Hot-spot Reduction Technology)
  • Beam Angle System VARIO Interchangeable Lens System
  • LED type Platinum Elite SMT LEDs
  • Number of LEDs 12
  • Wavelength White-Light
  • Colour Temp 6000K~
  • Colour Reproduction Index >70
  • Temperature Range -50 to +50°C (-58 to 122°F)
  • Cable Length 2.5m
Integrated Command and Control Technology:

Integrated Standard Features:
  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell sensitivity adjust
  • LED status indicator provides status on performance of the unit
  • LED status indicator on/off Disable programming mode
Advanced Features (accessed via VARIO remote control):
  • Timer function (up to 30 mins)
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Advanced Features available on VARIO2 PoE Premium variants (contact Raytec):
  • Telemetry input
  • Photocell following output
  • 24V DC power input
Certifications & Standards:
IP66
Country of Origin:
United Kingdom
Item Numbers
UNSPSC: 46111703
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Raytec VAR2-POE-W4-1 Infrared Illuminator is also known as RAY-VAR2POEW41
