Device Supported:

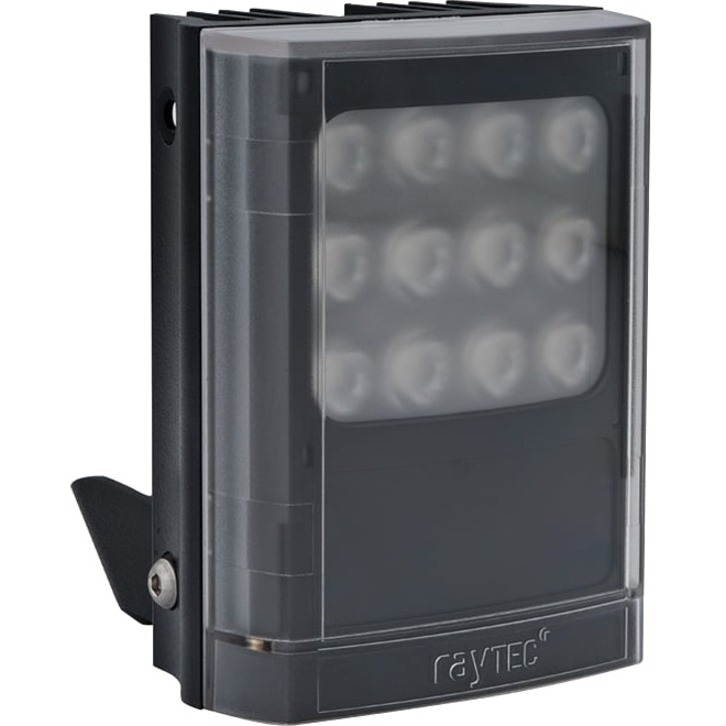

IR Illuminator
Raytec VAR2-I4-1 Accessory
Part Number:
VAR2-I4-1
Model:
Parts
Technical Information
Physical Characteristics
Color Family:
Dual Color
Product Color:
- White
- Black
Color Details:
- White - Light
Height:
5.3"
Width:
3.9"
Depth:
2.6"
Weight (Approximate):
2.09 lb
Miscellaneous
Package Contents:
- Medium Range Infra-Red Illuminator
- U Bracket
Additional Information:
- Max Distance: 110m (361ft)
- Angles and Max Distances:
- 10°x10° - 110m (361ft)
- 35°x10° - 65m (213ft)
- 60°x25° - 35m(115ft)
- 80°x30° - 25m (82ft)
- 120°x50° - 18m (59ft)
- Input: 12-24V AC/DC
- Beam Shape: Elliptical with HRT
- (Hot Spot Reduction Technology)
- Beam Angle System: VARIO interchangeable lens system
- Consumption:24W
- LED Type: Platinum Elite SMT LEDs
- Number of LEDs: 12
- Power Output (Luminous Flux):1863lm per luminaire
- Wavelength: White-Light
Country of Origin:
United Kingdom
Item Numbers
UNSPSC:
46171600
Get help from a Barcoding Expert!
The Raytec VAR2-I4-1 Accessory is also known as
RAY-VAR2I41
