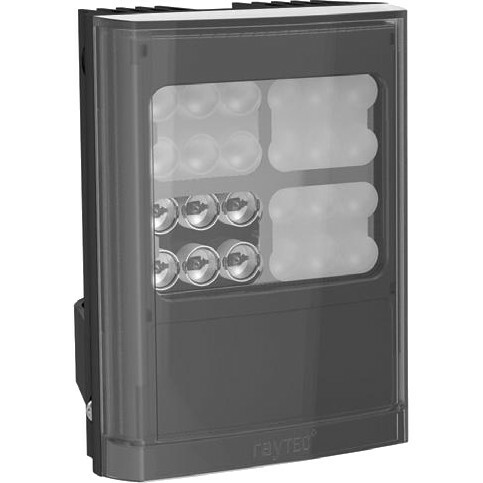

Raytec VAR-DZ -I8-1

Raytec - D-Zoom i8 Infra-Red, 850nm- angles 10 to 80 degrees
$1,083.57
Temporarily out of stock; available to order
Protect Your Product
Technical Information
Device Supported:
Video Surveillance System
Features:
  • Hot-spot Reduction Technology (HRT)
  • LED Indicator
  • LED Illumination
  • Zoomable Lighting
  • High Definition Lighting
  • Night Vision
  • Volt Free IR/WL switch
  • Automatic On/Off
Physical Characteristics
Color:
Black
Height:
7"
Width:
5"
Depth:
3.2"
Weight (Approximate):
3.60 lb
Miscellaneous
Additional Information:
Illuminator:
  • VAR-DZ-i8 VAR-DZ-w8
  • Max Distance 120m (394ft) 90m (295ft) at 10°
  • Angle 10° to 80° - smooth transition
  • Consumption 48W max
  • Input Voltage 12-24V AC or DC
  • Temp Range -50 to +50°C (-58 to 122°F)
  • Cable Length 2.5m
  • Cable Specification RED/BLACK - Power WHITE/YELLOW - Photocell following contact output ORANGE/PURPLE - Telemetry Input BLUE/GREEN - Zoom Control
  • Wavelength 850nm White-Light (5,700k)
  • Colour Rendition Index (CRI) n/a 74-80
  • Certification CE
Integrated Command and Control Technology:

Integrated Standard Features:
  • In-built photocell for automatic on/off operation
  • LED status indicator provides status on performance of the unit
  • Photocell following output
Integrated Advanced Features (accessed via VARIO remote control):
  • Power adjust from 20-100%
  • Photocell sensitivity adjust
  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • LED status indicator on/off
  • Restore factory default settings
Application/Usage:
  • Lighting Control
  • Surveillance
  • Indoor
Certifications & Standards:
IP66
Item Numbers
UNSPSC: 46111703


The Raytec VAR-DZ -I8-1 is also known as RAY-VARDZI81 or VARDZI81 .
