Raritan PXE-1771V Products

Part Number: PXE-1771V
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L21-20P
Receptacle Type
IEC 60320 C13IEC 60320 C19NEMA 5-20R
Receptacle Detail
36 x IEC 60320 C136 x IEC 60320 C193 x NEMA 5-20R
Input Voltage
120 V AC230 V AC

Product Description:

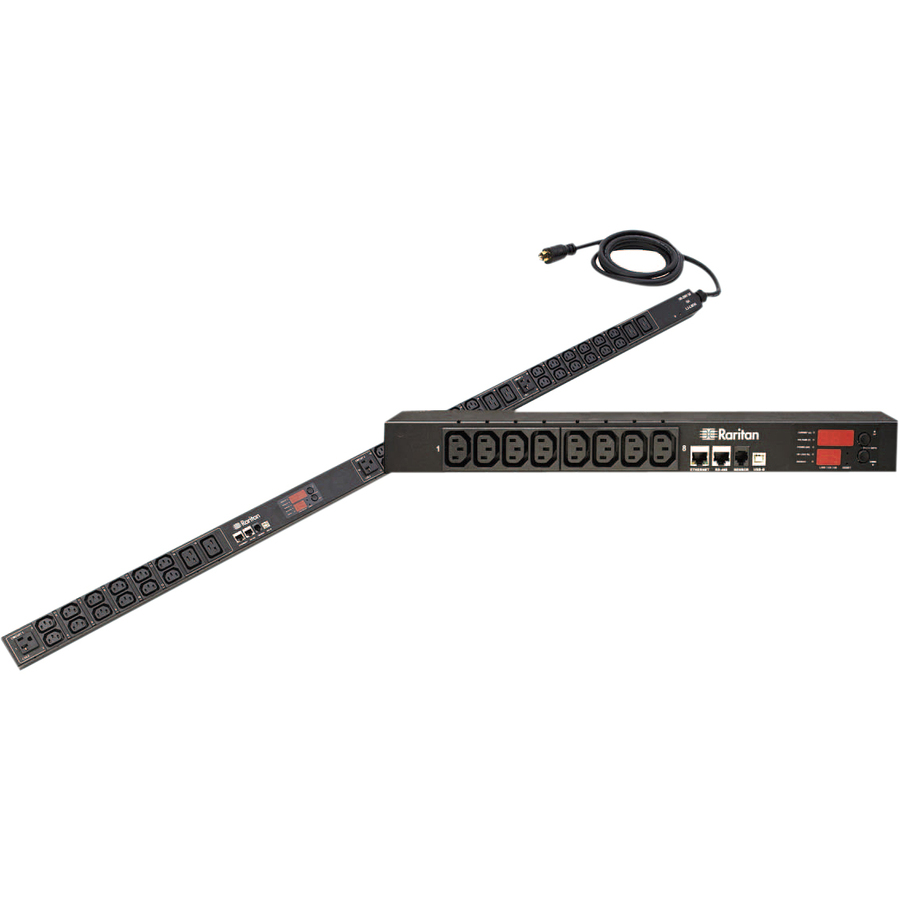

  Raritan PXE-1771V 45-Outlets PDU - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 3 x NEMA 5-20R - 5.80 kVAVertical Rackmount
Explore all Raritan Parts Products
Add to Quote
Raritan PXE-1771V Products
Raritan PXE-1771V Products
Raritan PXE-1771V Products Raritan PXE-1771V Products
Technical Information
Plug/Connector Type:
NEMA L21-20P
Receptacle Type:
  • IEC 60320 C13
  • IEC 60320 C19
  • NEMA 5-20R
Receptacle Detail:
  • 36 x IEC 60320 C13
  • 6 x IEC 60320 C19
  • 3 x NEMA 5-20R
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
120 V AC - 208 V AC
Power Rating (VA):
5800 VA
Management
Management:

Protocols:

  • HTTP
  • HTTPS
  • NTP
  • SMTP
  • SSH
  • Telnet
  • SSL
  • SNMP v1
  • SNMP v2
  • SNMP v3
  • JSON-RPC
  • SNMP INFORMS
Interfaces/Ports
Modem (RJ-12):
Yes
Network (RJ-45):
Yes
Physical Characteristics
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Item Numbers
GTIN: 0052053123380, 0785813012159
UPC: 052053123380, 785813012159
EAN: 0052053123380, 0785813012159
UNSPSC: 39121017
