RAM Mount RAM-VPR-102-1 Products
Part Number:
RAM-VPR-102-1
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-VPR-102-1 Products Overview

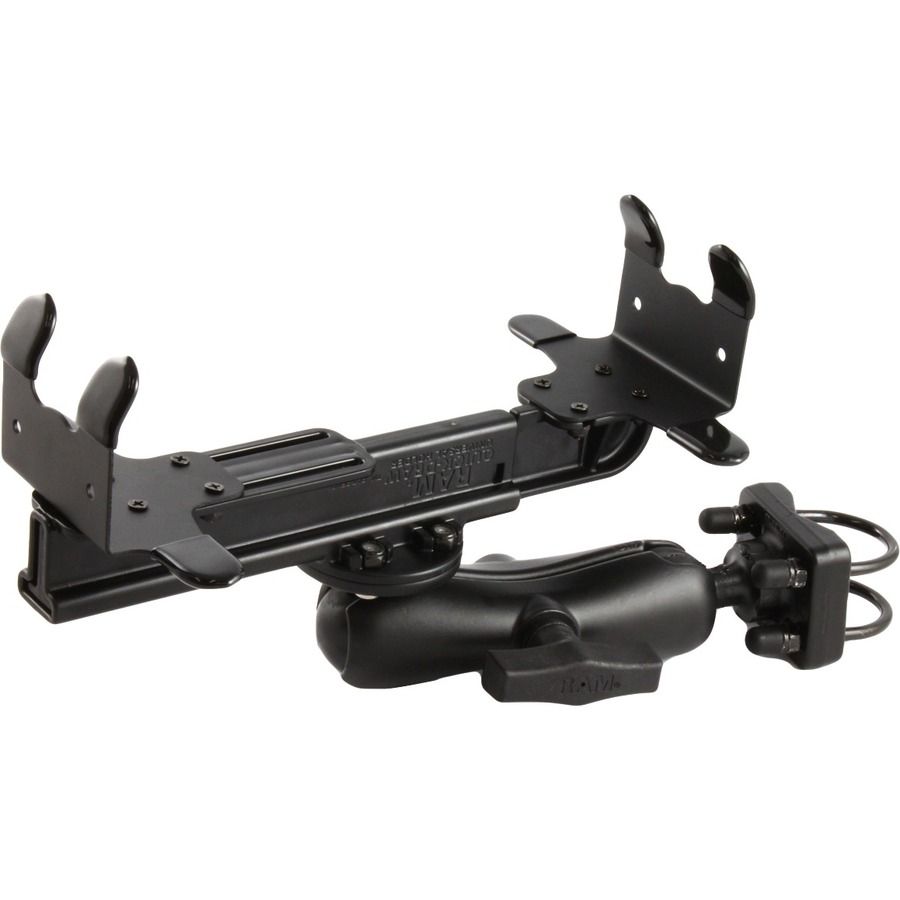

The RAM-VPR-102-1 is designed to hold Canon BJC-85 portable printers. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole™ and other poles with a diameter from 1.5" to 1.88".
Cradle Clamping Dimensions:
Width: Min 8" to Max 14.5"
Height: Max 1.75"
Cradle Dimensions:
(12.4W x 6.9D x 2.0H)
U-Bolt Dimensions:
0.75" to 1.88" in diameter
