RAM Mount RAM-SG-D-111U Products

Part Number: RAM-SG-D-111U
Model: Parts
Add to My Shopping List Add to Compare
$219.49

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Mounting BracketGPSFishfinder
Maximum Load Capacity
6 lb
Product Material
Powder Coated Marine-grade Aluminum
Height
11.13"

Product Description:

  RAM Mounts Pin-Lock Marine Mount for Mounting Bracket, GPS, Fishfinder - 6 lb Load Capacity
Explore all RAM Mount Parts Products
Add to Quote
RAM Mount RAM-SG-D-111U Products
RAM Mount RAM-SG-D-111U Products

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-SG-D-111U Products Overview

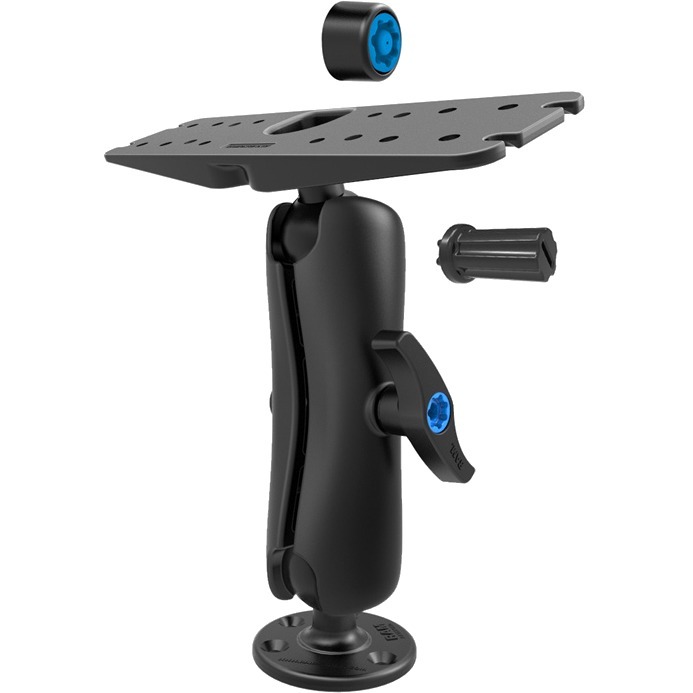

The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.

Overall Height:
11.125"

Weight Capacity:
Up to 6 lbs.

Product Information
Device Supported:
  • Mounting Bracket
  • GPS
  • Fishfinder
Maximum Load Capacity:
6 lb
Physical Characteristics
Product Material:
Powder Coated Marine-grade Aluminum
Height:
11.13"
Miscellaneous
Compatibility:
  • Garmin ECHOMAP Ultra 122sv
  • Garmin ECHOMAP Ultra 126sv
  • Garmin GPSMAP 1222/xsv Touch
  • Garmin GPSMAP 1242xsv/Touch
  • Lowrance HDS Carbon 9
  • Lowrance HDS Carbon 12
  • Lowrance Elite-9 CHIRP
  • Lowrance Elite-9 Ti²
  • Lowrance Elite-12 Ti
  • Lowrance Elite-12 Ti²
  • Garmin Fishfinders and GPS Chartplotters
  • Humminbird Fishfinders and GPS Chartplotters
  • Lowrance Fishfinders and GPS Chartplotters
  • Raymarine Fishfinders and GPS Chartplotters
  • RAM® Hi-Torq™ Wrench for D Size Socket Arms
    • Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    GTIN: 0793442945335
    UPC: 793442945335
    EAN: 0793442945335
    UNSPSC: 31162313
