RAM Mount RAM-HOL-ZE22PU Docks and Cradles

Part Number: RAM-HOL-ZE22PU
Model: Parts
to get Free Ground Shipping on your order.
$269.25

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Docking
Charging Capability
Yes
Device Supported
Tablet PC
Host Interface
Pogo Pin

Product Description:

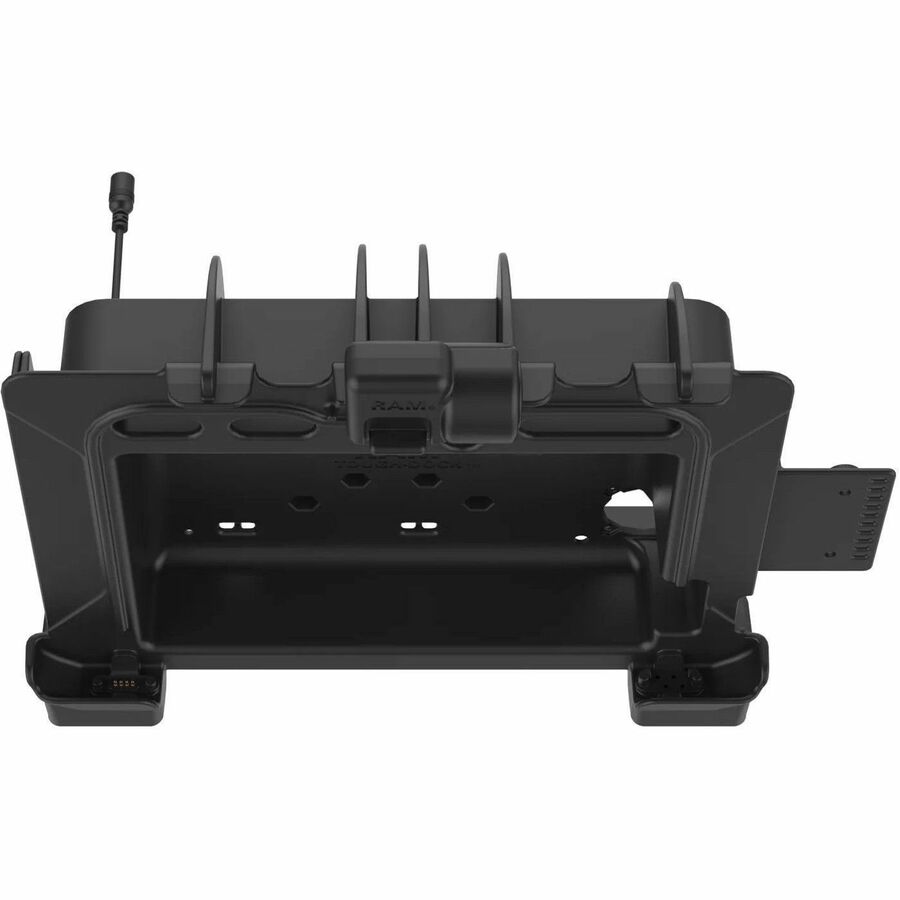

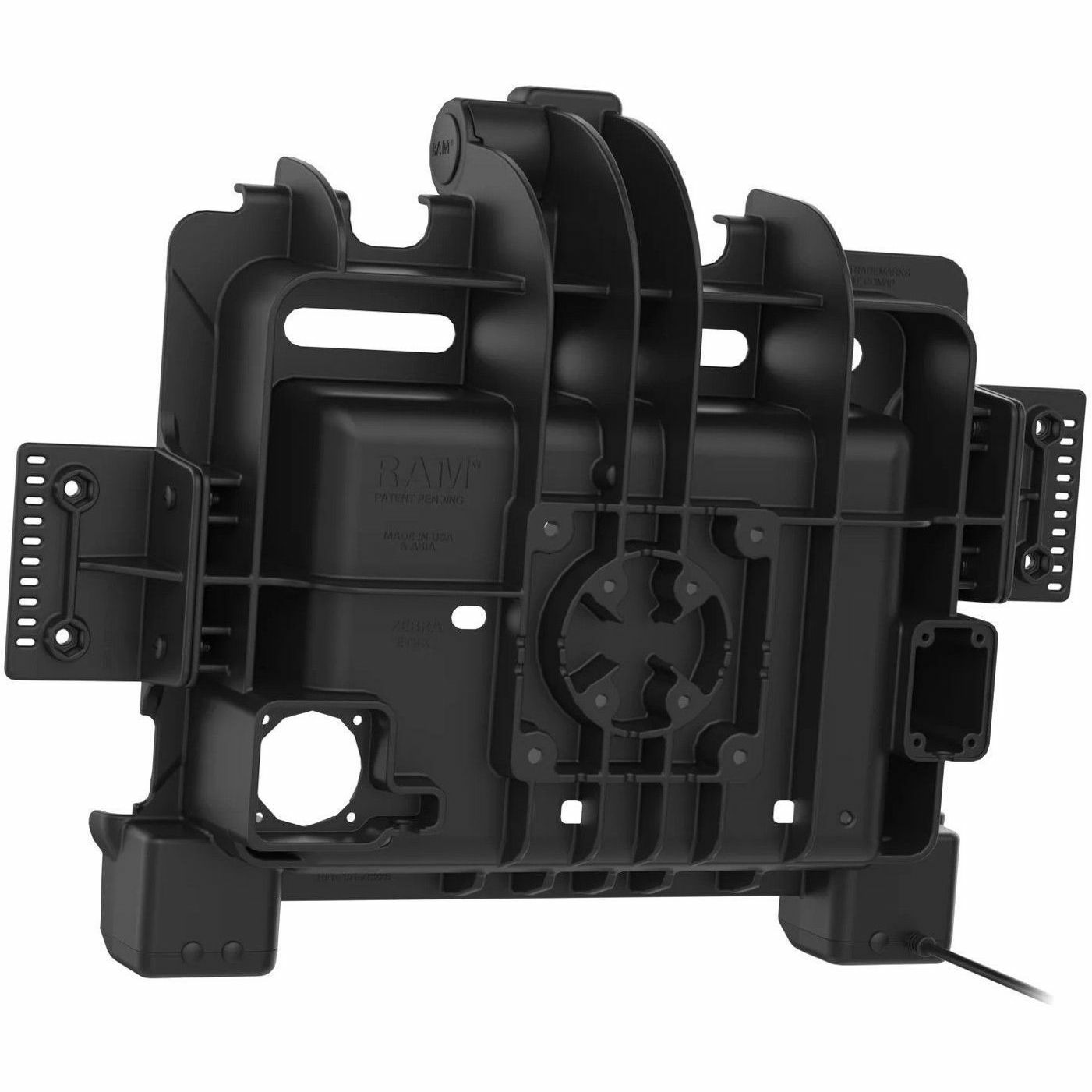

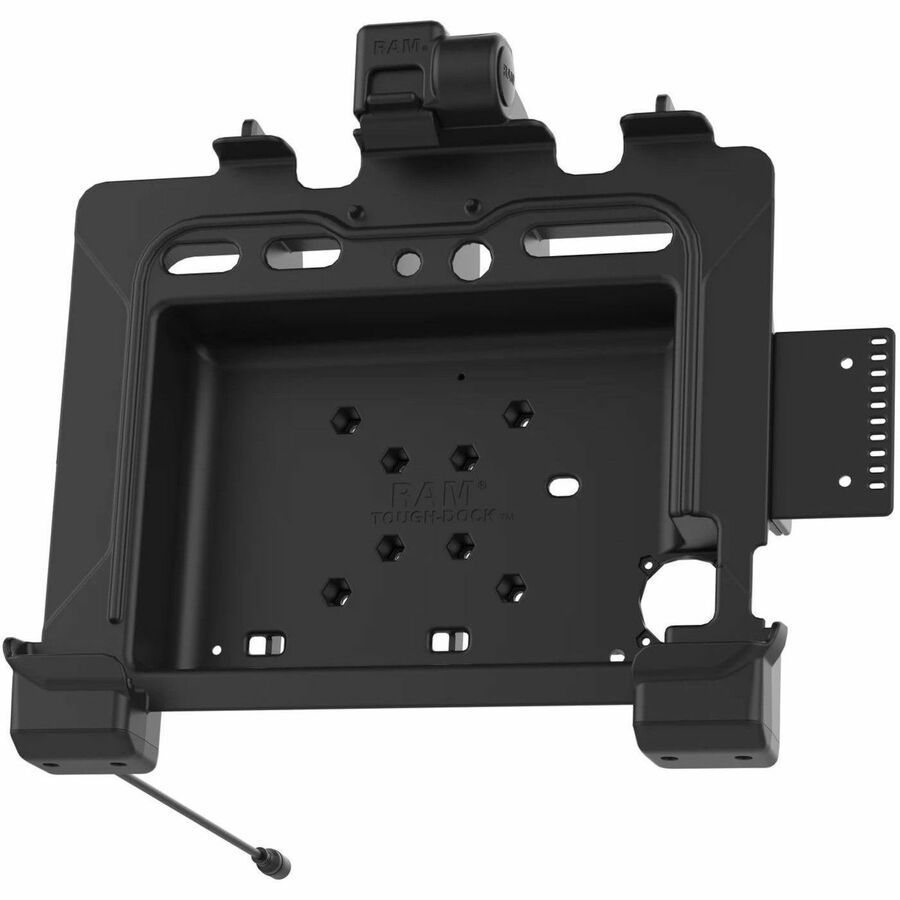

  Docks & Cradles, RAM-Mount, Powered Dock for Zebra ET8x 2-in-1 Tablet

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-HOL-ZE22PU Docks and Cradles Overview

This non-locking RAM® Dock (RAM-HOL-ZE22PU) features a powered form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Power is provided through the pogo pin docking contacts and fed through the dock's 5.5mm DC power jack. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle's A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.

Technical Information
Connectivity Technology:
Docking
Charging Capability:
Yes
Device Supported:
Tablet PC
Interfaces/Ports
Host Interface:
Pogo Pin
Physical Characteristics
Product Material:
High Strength Composite
Height:
11.9"
Width:
12.8"
Depth:
4.4"
Weight (Approximate):
2.37 lb
Miscellaneous
Package Contents:
  • Powered Dock for Zebra ET8x 2-in-1 Tablet
  • 1 x Side bracket for accessory mounting
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 8 x 4" Zip Ties
  • 2 x 7" Zip Ties
Compatibility:

Zebra Tablet PCs:

  • ET80
  • ET85
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43201611
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The RAM Mount RAM-HOL-ZE22PU Docks and Cradles is also known as RAM-HOL-ZE22PU
