RAM Mount RAM-HOL-ZE11U Accessory

Part Number: RAM-HOL-ZE11U
Model: Parts
to get Free Ground Shipping on your order.
$97.65

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
TabletMounting BaseSmartphoneScannerBattery
Maximum Screen Size Supported
10.10"
Features
Spring Loaded MechanismCable Management
VESA Mount Compatible
Yes

Product Description:

  RAM UNPOWERED SPRING LOADED CRADLE FOR ZEBRA ET5X 10.1 INCH SERIES TABLETS

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-HOL-ZE11U Accessory Overview

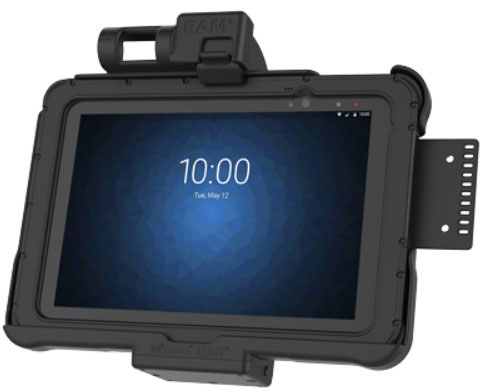

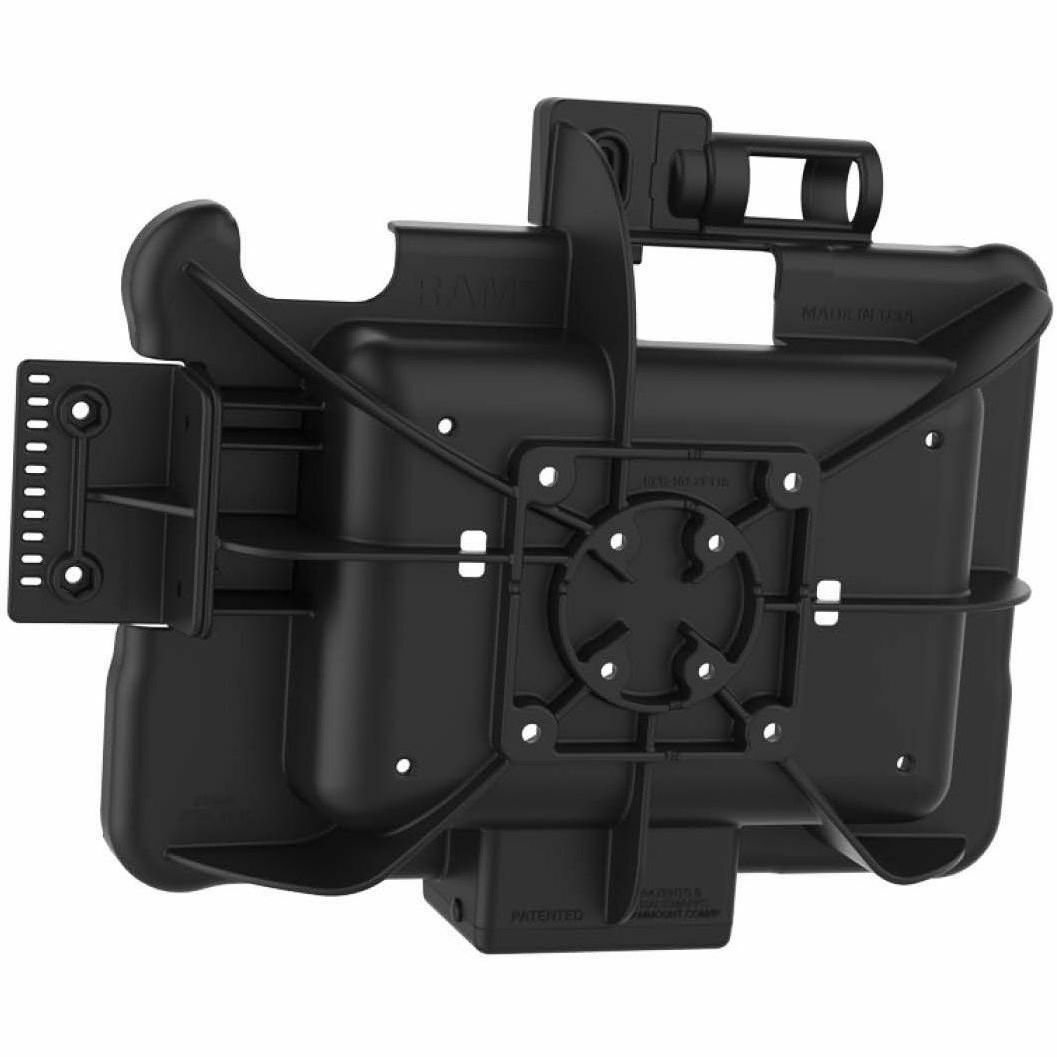

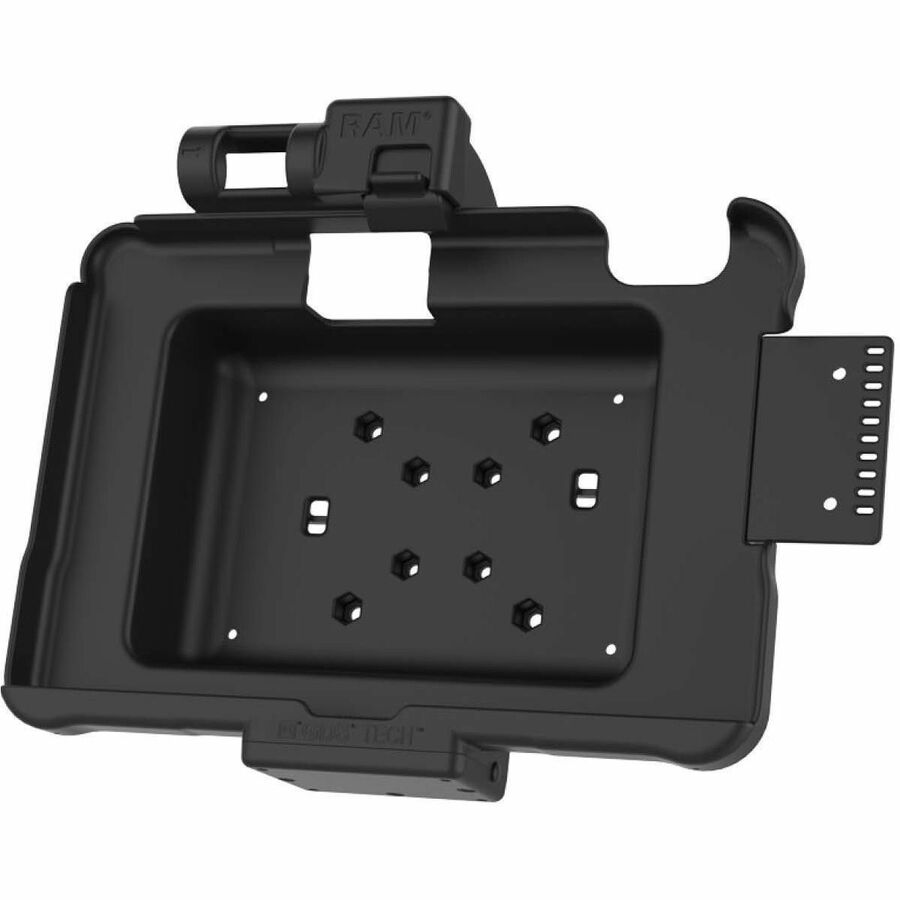

The GDS®Vehicle Dock features a form-fit design specifically for the Zebra ET5x 10.1" series tablets, including cutouts leaving all buttons and ports exposed. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM®4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM®2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM®2-hole diamond bases for device mounting and features a cable management system.



Product Information
Device Supported:
  • Tablet
  • Mounting Base
  • Smartphone
  • Scanner
  • Battery
Maximum Screen Size Supported:
10.10"
Features:
  • Spring Loaded Mechanism
  • Cable Management
Physical Characteristics
VESA Mount Compatible:
Yes
Mounting Pattern:
75 x 75
Product Material:
High Strength Composite
Weight (Approximate):
1.60 lb
Miscellaneous
Package Contents:
  • Form-Fit Holder for Zebra ET5x 10.1" Series
  • 1 x Side bracket for accessory mounting and strain relief
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 6 x Small Cable Ties
Application/Usage:
Vehicle
Compatibility:

Ram Mounts:

  • RAM-VP-SW2F-89-2461
  • RAM-D-101U-2461
  • RAM-D-2461U-C-247-4


Zebra Tablet:

  • ET50
  • ET51
  • ET55
  • ET56
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0793442013942
UPC: 793442013942
EAN: 0793442013942
UNSPSC: 43191615
