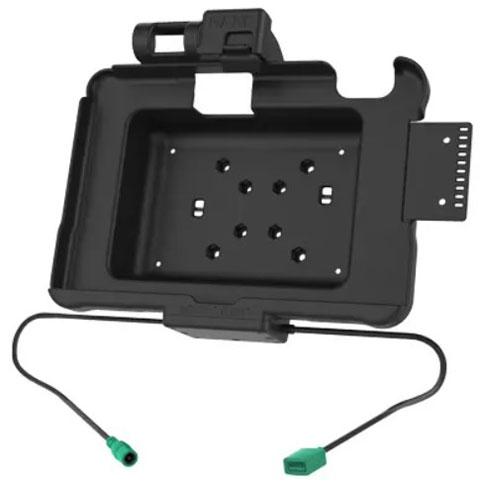

RAM Mount RAM-HOL-ZE11PDU Accessory

RAM Mount - RAM, POWER & DATA SPRING LOADED CRADLE FOR ZEBRA ET5X 10.1 INCH SERIES TABLETS
  • Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Read More
$154.67
Add to Quote
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-HOL-ZE11PDU Accessory Overview

Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

Technical Information
Connectivity Technology:
Wired
Charging Capability:
Yes
Synchronizing Capability:
Yes
Device Supported:
Tablet PC
Interfaces/Ports
Host Interface:
Pogo Pin
Physical Characteristics
Product Material:
High Strength Composite
Weight (Approximate):
1.65 lb
Miscellaneous
Package Contents:
  • Power + Data Dock for Zebra ET5x 10.1" Series
  • 1 x Side bracket for accessory mounting and strain relief
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 8 x Small Cable Ties
  • 2 x Large Cable Ties
  • 1 x USB Type A Cable Clamp Housing
Compatibility:
Zebra Tablet PCs:
  • ET50 10.1" With Rugged Frame
  • ET51 10.1" With Rugged Frame
  • ET55 10.1" With Rugged Frame
  • ET56 10.1" With Rugged Frame
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442013980
UPC: 793442013980
EAN: 0793442013980
UNSPSC: 43201611
