RAM Mount RAM-HOL-ZE11PCLU Accessory

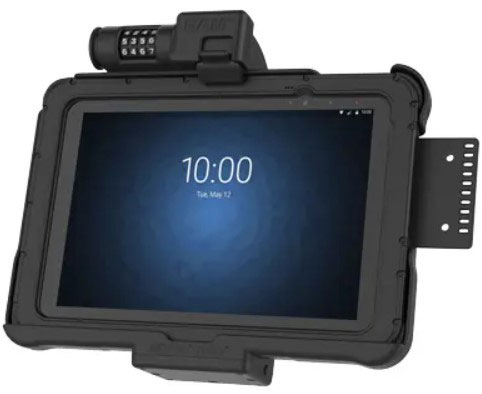

RAM Mount - RAM, POWER ONLY SPRING LOADED COMBO LOCK CRADLE FOR ZEBRA ET5X 10.1 INCH SERIES TABLETS
  • Combo locking powered dock provides charging capabilities for the Zebra ET5x 10.1" series tablets with Rugged Frame via DC 5.5mm power jack
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Read More
$172.29
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-HOL-ZE11PCLU Accessory Overview

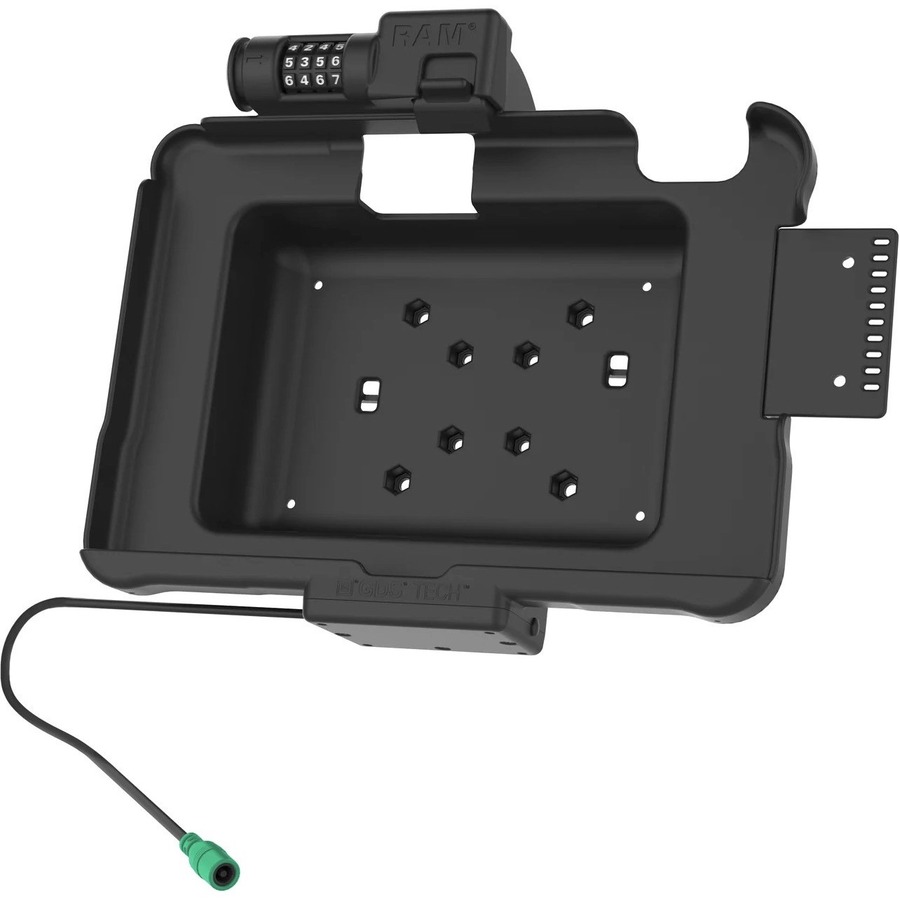

Featuring GDS® Technology™ for charging capabilities and a combination lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET5x 10.1" series tablets allows you to keep the device charged through the pogo pin contacts when the device is docked-power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

Technical Information
Connectivity Technology:
Docking
Device Supported:
Smartphone/Tablet
Interfaces/Ports
Host Interface:
Pogo Pin
Physical Characteristics
Rugged:
Yes
Product Color:
Black
Weight (Approximate):
1.90 lb
Miscellaneous
Package Contents:
  • Combo Locking Powered Dock for Zebra ET5x 10.1" Series
  • 1 x Side Bracket for Accessory Mounting and Strain Relief
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 4 x Small Cable Ties
Compatibility:
Zebra Tablet PCs:
  • ET50 10.1" with Rugged Frame
  • ET51 10.1" with Rugged Frame
  • ET55 10.1" with Rugged Frame
  • ET56 10.1" with Rugged Frame
Brand Compatibility:
Zebra
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442014239
UPC: 793442014239
EAN: 0793442014239
UNSPSC: 43211602
