RAM Mount RAM-HOL-ZE10PU Docks and Cradles

Part Number: RAM-HOL-ZE10PU
Model: Parts
to get Free Ground Shipping on your order.
$160.80

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Docking
Charging Capability
Yes
Device Supported
Tablet PC
Host Interface
Pogo Pin

Product Description:

  Docks & Cradles, RAM-Mount, GDS Powered Dock for Zebra ET5x 8.3" & 8.4" Series

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-HOL-ZE10PU Docks and Cradles Overview

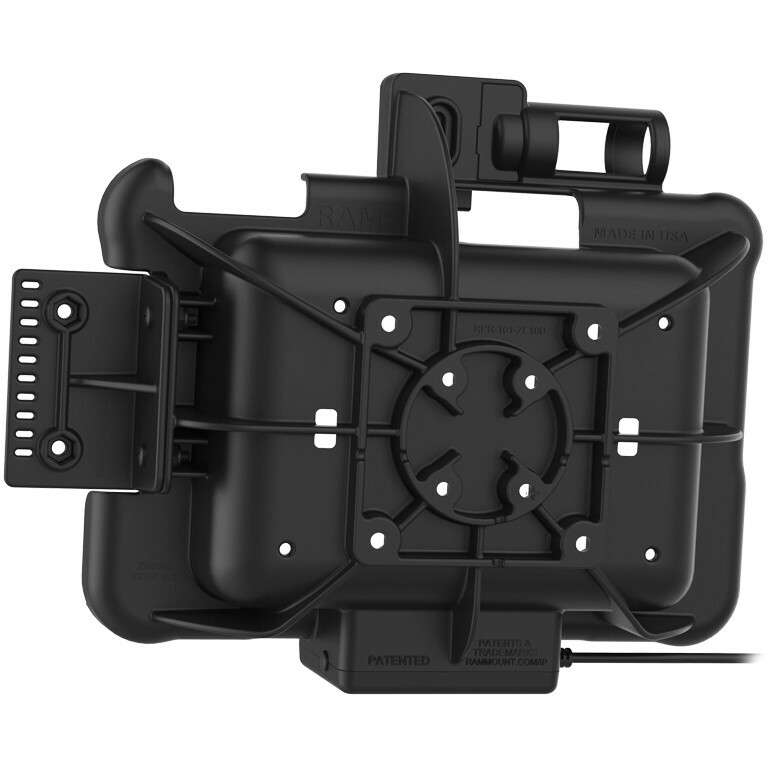

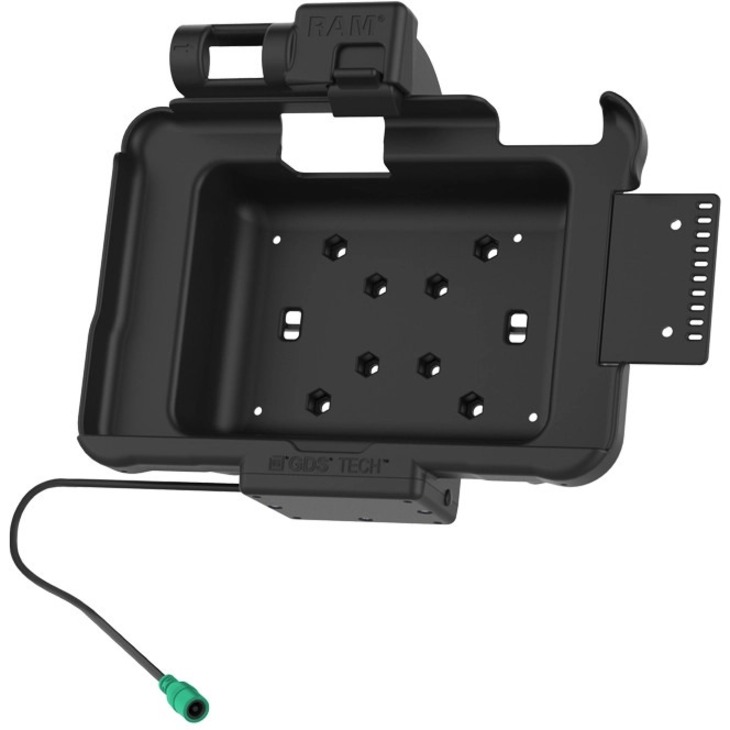

Featuring GDS® Technology™ for charging capabilities, the GDS® Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to keep the device charged through the pogo pin contacts when the device is docked-power is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
Technical Information
Connectivity Technology:
Docking
Charging Capability:
Yes
Device Supported:
Tablet PC
Interfaces/Ports
Host Interface:
Pogo Pin
Physical Characteristics
Product Material:
High Strength Composite
Weight (Approximate):
1.29 lb
Miscellaneous
Package Contents:
  • Powered Dock for Zebra ET5x 8.3" & 8.4" Series
  • 1 x Side Bracket for Accessory Mounting and Strain Relief
  • 4 x #8-32 x 5/8" Machine Screws
  • 2 x #8-32 x 1/2" Machine Screws
  • 6 x #8-32 Nylock Nuts
  • 4 x #10-24 x 5/8" Machine Screws
  • 4 x #10-24 Nylock Nuts
  • 4 x Small Cable Ties
Compatibility:
Zebra Tablet PCs:
  • ET50 8.3" with rugged frame
  • ET51 8.4" with rugged frame
  • ET55 8.3" with rugged frame
  • ET56 8.4" with rugged frame

Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442013959
UPC: 793442013959
EAN: 0793442013959
UNSPSC: 43201611
