Recommended Usage:
- Vehicle
- Tablet
RAM Mount RAM-HOL-SAM60P-V7B1U Docks and Cradles
Part Number:
RAM-HOL-SAM60P-V7B1U
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-HOL-SAM60P-V7B1U Docks and Cradles Overview

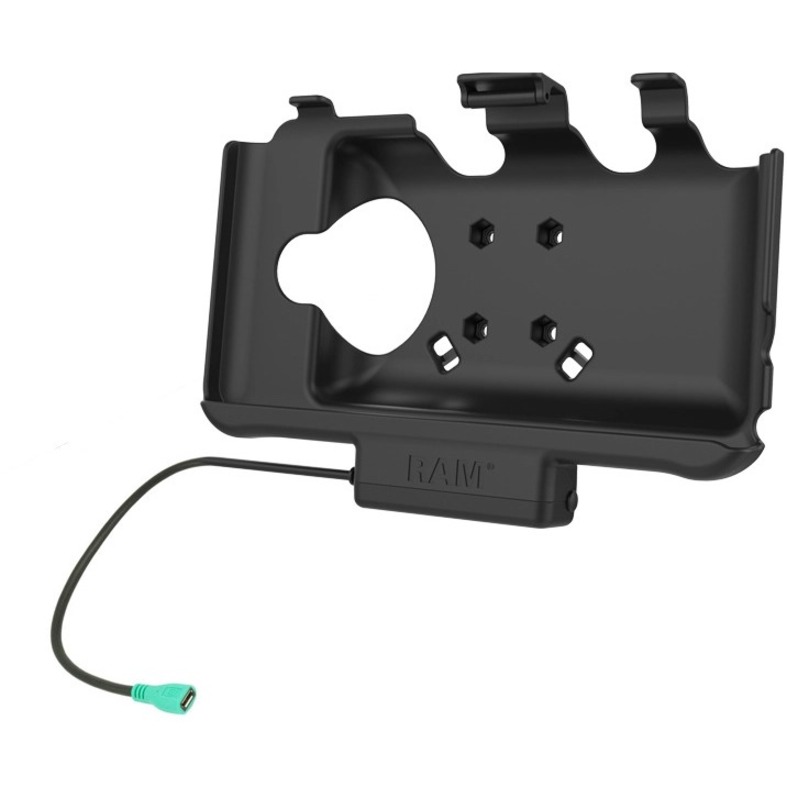

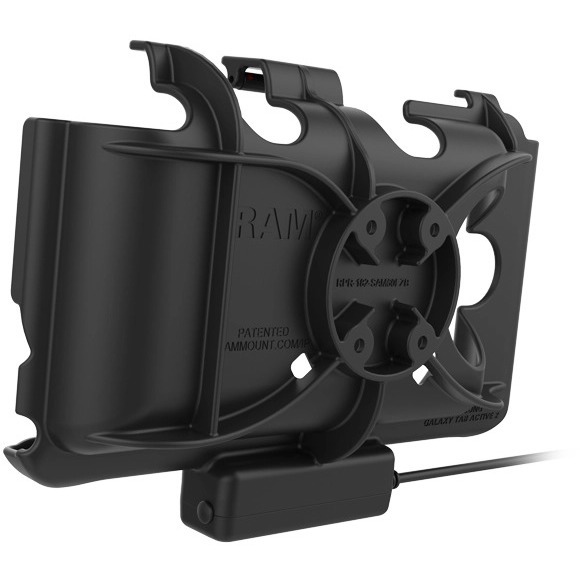

This powered cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.
Technical Information
Physical Characteristics
Product Material:
High Strength Composite
Dimensions:
Width: 9.24" , Height: 6.34" , Depth: 2.57"
Weight (Approximate):
1.05 lbs.
Miscellaneous
Additional Information:
- Packaging Type: Poly Bag
- Input Voltage: 10V - 30V DC
- Output Voltage: 5-9VDC
- Output Current: 2.5A max
- Input Connector: mUSB 2.0
- Input Cable Length: .21 Meter
- Operating Temperature: -10°C to +70°C
Package Contents:
- Powered Dock for Tab Active3 & Active2 with Hardwire Charger
- 4 x #8-32 x 5/8" Machine Screws
- 4 x #8-32 Nylock Nuts
- 1 x GDS Genuine USB 2.0 Straight Cable
- 1 x Optional Cable Clamp Housing
- 2 x Large Cable Ties
- 5 x Small Cable Ties
Compatibility:
Samsung - Galaxy Tab Active3, Galaxy Tab Active2
Environmental Certification:
- RoHS
- WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0793442111068
UPC:
793442111068
EAN:
0793442111068
UNSPSC:
31162800
