Device Supported:
USB Type C Device
RAM Mount RAM-GDS-CHARGE-V3FC-1U Cables, Connectors, and Adapters
Part Number:
RAM-GDS-CHARGE-V3FC-1U
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-GDS-CHARGE-V3FC-1U Cables, Connectors, and Adapters Overview

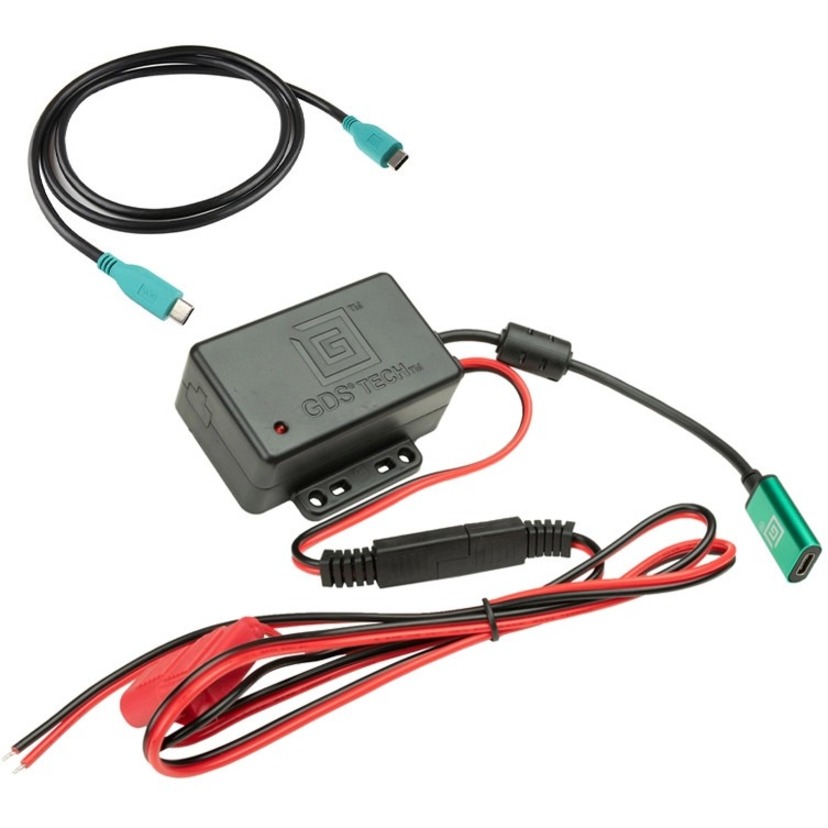

The GDS® Modular Hardwire Charger with USB Type-C Female Connector is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Modular Hardwire Charger delivers USB Type-C power to your device with an input voltage of 10-28V. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new charger. Included with the charger is a 1 meter long USB Type-C male to male cable for connecting to any USB Type-C GDS® vehicle dock.
Technical Information
Interfaces/Ports
USB Type-C:
Yes
Power Description
Input Voltage:
- 10 V
- 28 V
Output Voltage:
- 5 V DC
- 9 V DC
- 12 V DC
Maximum Output Current:
2 A
Physical Characteristics
Weight (Approximate):
7.20 oz
Miscellaneous
Package Contents:
- Hardwire USB Type-C Power Delivery Charger
- 1 x 1 Meter USB Type-C Male to Male Cable
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0793442020193
UPC:
793442020193
EAN:
0793442020193
UNSPSC:
39121006
The RAM Mount RAM-GDS-CHARGE-V3FC-1U Cables, Connectors, and Adapters is also known as
RAM-GDS-CHARGE-V3FC-1U
