RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory

Part Number: RAM-GDS-CHARGE-V3CH-2U
Model:
Add to My Shopping List Add to Compare
$154.23
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Vehicle Dock
Cable Length
8.20 ft
Features
Overvoltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionMoisture Resistant
Plug/Connector Type
Type C

Product Description:

  Power Device Accessories, RAM Mount, 30-60VDC IN 5-15VDC OUT TYPE C MALE PD HARDWIRE CHARGER
Explore all RAM Mount Parts Products
Add to Quote
RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory
RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory
RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-GDS-CHARGE-V3CH-2U Accessory Overview

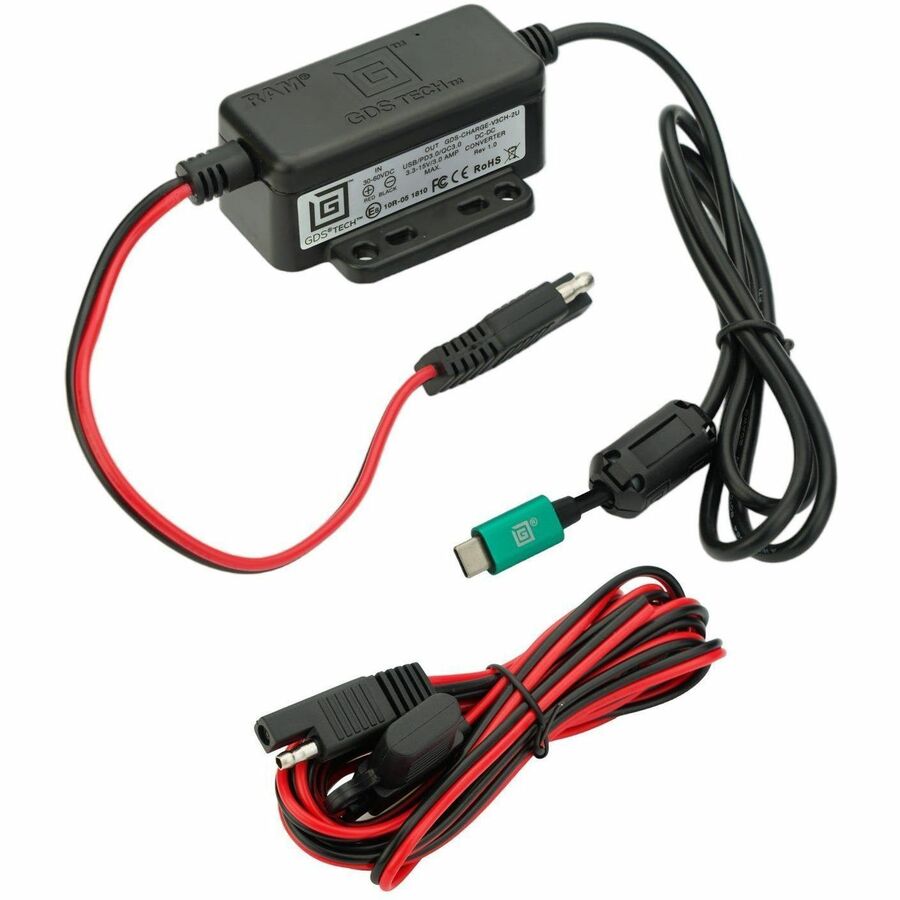

The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.

Technical Information
Device Supported:
Vehicle Dock
Cable Length:
8.20 ft
Features:
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • Moisture Resistant
Plug/Connector Type:
Type C
Interfaces/Ports
USB Type-C:
Yes
Number of USB Type-C Ports:
1
USB Power Delivery:
1 x Type-C 45W
Power Description
Input Voltage Range:
30 V DC - 64 V DC
Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 15 V DC
Maximum Output Power:
45 W
Maximum Output Current:
3 A
Physical Characteristics
Weight (Approximate):
7.52 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
158°F (70°C)
Minimum Storage Temperature:
-40°F (-40°C)
Maximum Storage Temperature:
185°F (85°C)
Miscellaneous
Certifications & Standards:
  • CE Certification
  • RCM Certification
  • FCC Certification
  • UL 62368-1 Certificaton
  • SAE J-1113-5 Load Dump (Transient Voltage)
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442015908
UPC: 793442015908
EAN: 0793442015908
UNSPSC: 39121006
