RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device

Part Number: RAM-GDS-CHARGE-V3C-2U
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$120.12
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cable Length
8.20 ft
Features
Overvoltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionMoisture Resistant
Output Connectors Detail
USB Type-C Male
Input Connectors Detail
Bare Wire

Product Description:

  Power Device, RAM Mount, GDS Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C
Explore all RAM Mount Parts Products
Add to Quote
RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device
RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device
RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-GDS-CHARGE-V3C-2U Power Device Overview

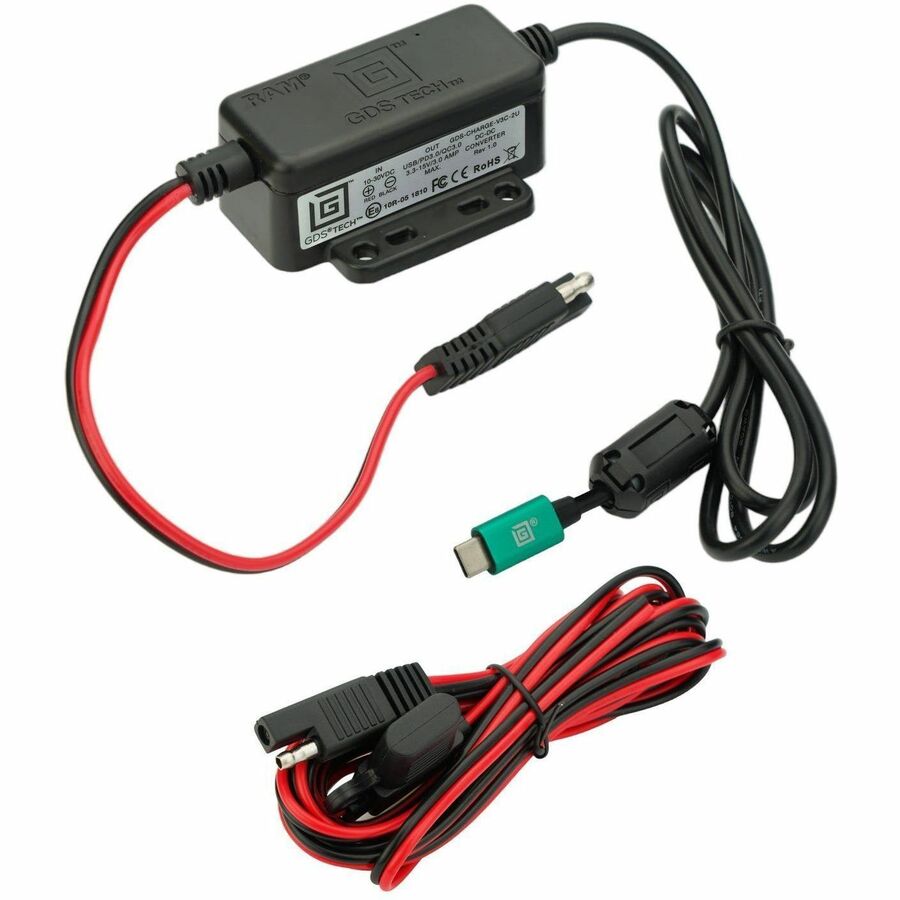

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

Technical Information
Cable Length:
8.20 ft
Features:
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • Moisture Resistant
Output Connectors Detail:
USB Type-C Male
Input Connectors Detail:
Bare Wire
Interfaces/Ports
USB Type-C:
Yes
Power Description
Input Voltage:
  • 10 V DC
  • 30 V DC
Input Voltage Range:
10 V DC - 30 V DC
Output Voltage:
  • 5 V DC
  • 15 V DC
Maximum Output Current:
3 A
Physical Characteristics
Weight (Approximate):
7.68 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
158°F (70°C)
Minimum Storage Temperature:
-40°F (-40°C)
Maximum Storage Temperature:
185°F (85°C)
Miscellaneous
Certifications & Standards:
  • CE
  • RCM
  • FCC
  • UL 62368-1
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442015892
UPC: 793442015892
EAN: 0793442015892
UNSPSC: 39121006
