RAM Mount RAM-GDS-CHARGE-V3C-1U Power Device

Part Number: RAM-GDS-CHARGE-V3C-1U
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$108.40

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
USB Type C Device
Cable Length
3.94 ft
Features
Short Circuit ProtectionOvervoltage Protection
Cables Included Detail
1.2 Meters including 2 Pole Flat Marine Connector

Product Description:

  Power Systems & Supplies, RAM-Mount, GDS Hardwire Male USB Type-C (12VDC Output) Power Delivery Charger
Explore all RAM Mount Parts Products
Add to Quote
RAM Mount RAM-GDS-CHARGE-V3C-1U Power Device
RAM Mount RAM-GDS-CHARGE-V3C-1U Power Device

RAM Mount Parts Products Model Overview

Products and parts from RAM-Mount.
RAM Mount RAM-GDS-CHARGE-V3C-1U Power Device Overview

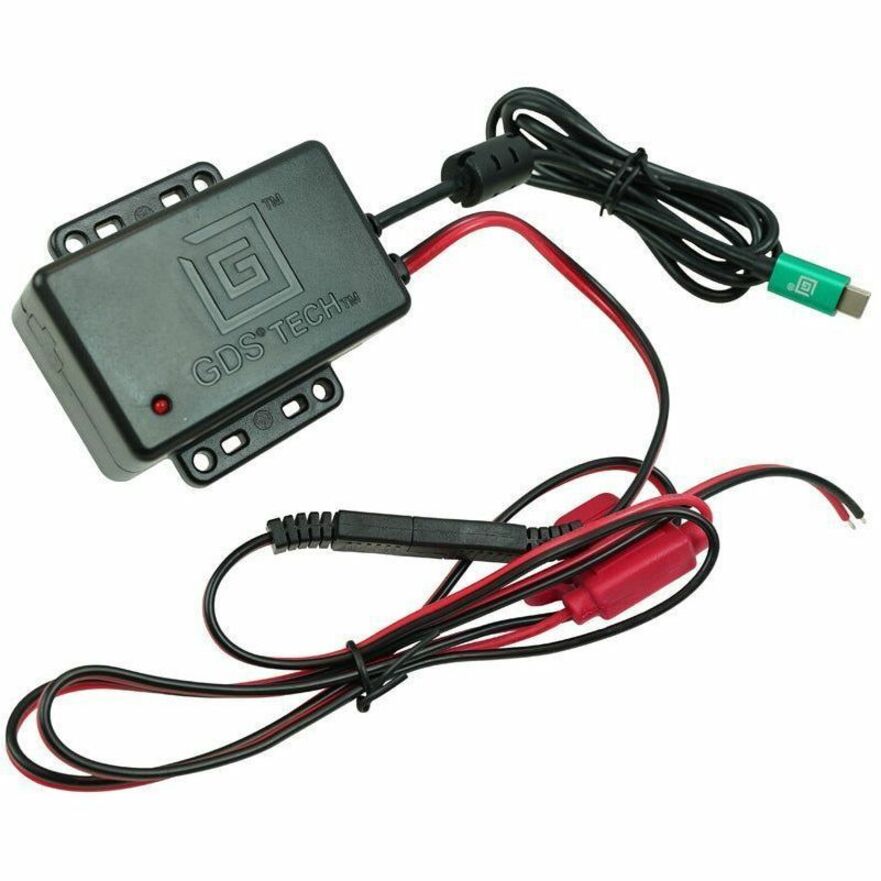

The GDS®Modular Hardwire Charger with USB Type-C Male Connector is the ideal solution for providing power to any Type-C GDS®vehicle solution. By connecting directly to the power source of your vehicle, the GDS®Hub™delivers Type-C power to your device. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new GDS®Hub™. Always Protected. Always Connected.®

Technical Information
Device Supported:
USB Type C Device
Cable Length:
3.94 ft
Features:
  • Short Circuit Protection
  • Overvoltage Protection
Cables Included Detail:
1.2 Meters including 2 Pole Flat Marine Connector
Input Connectors Detail:
Male USB Type-C
Interfaces/Ports
USB Type-C:
Yes
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC
Input Voltage Range:
12 V DC - 24 V DC
Output Voltage:
12 V DC
Maximum Output Power:
37.50 W
Maximum Output Current:
3 A
Physical Characteristics
Weight (Approximate):
7.20 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
158°F (70°C)
Minimum Storage Temperature:
-40°F (-40°C)
Maximum Storage Temperature:
185°F (85°C)
Miscellaneous
Certifications & Standards:
  • FCC
  • IC
  • CE RCM
Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0793442911910
UPC: 793442911910
EAN: 0793442911910
UNSPSC: 39121006
