Recommended Usage:
Vehicle
Connector Gender:
Male
RAM Mount RAM-GDS-CHARGE-V10U Power Device
Part Number:
RAM-GDS-CHARGE-V10U
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.

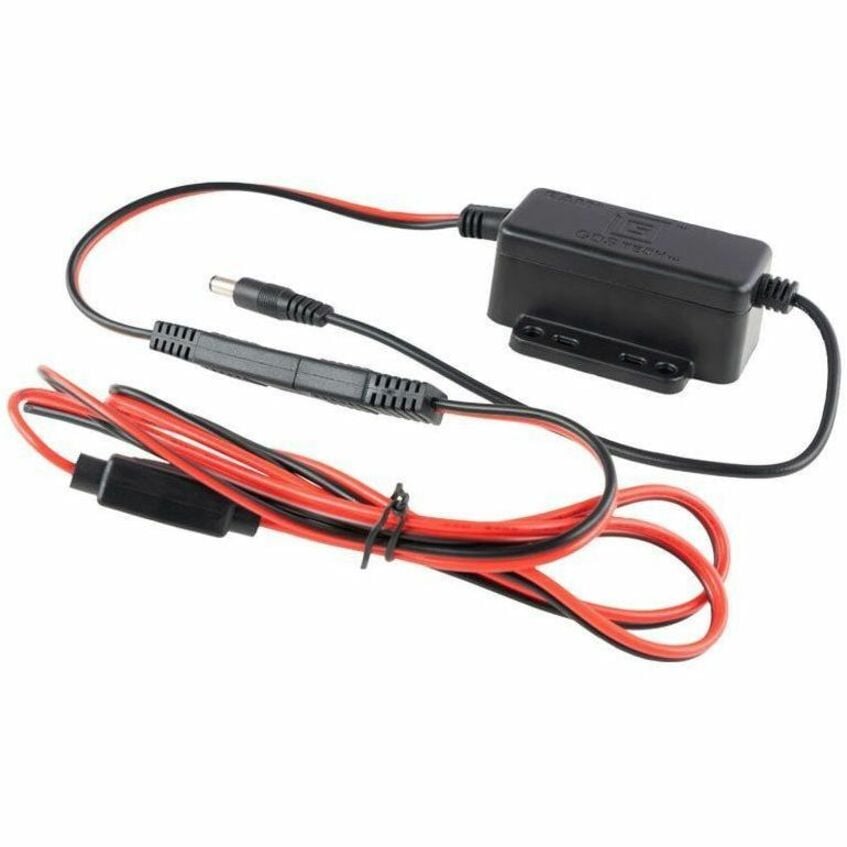

RAM Mount RAM-GDS-CHARGE-V10U Power Device Overview
The GDS®Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM®or GDS®DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.
Technical Information
Power Description
Input Voltage:
- 32 V DC
- 10 V DC
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
158°F (70°C)
Minimum Storage Temperature:
-40°F (-40°C)
Maximum Storage Temperature:
158°F (70°C)
Physical Characteristics
Dimensions:
- Input Cable Length : 1.2 Meters .
- Output Cable Length: .2 Meters.
Weight (Approximate):
Weight: 0.3 lb
Miscellaneous
Package Contents:
- Male 5.5mm Barrel Connector.
- Hardwire Charger.
Compatibility:
RAM Mounts RAM or GDS DC powered docking station
Ingress Protection Rating:
IP66
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0793442014390
UPC:
793442014390
EAN:
0793442014390
UNSPSC:
26121639
