Device Supported:
- Tablet PC
- USB Device
RAM Mount RAM-GDS-CHARGE-OTGAU Spare Parts
Part Number:
RAM-GDS-CHARGE-OTGAU
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-GDS-CHARGE-OTGAU Spare Parts Overview

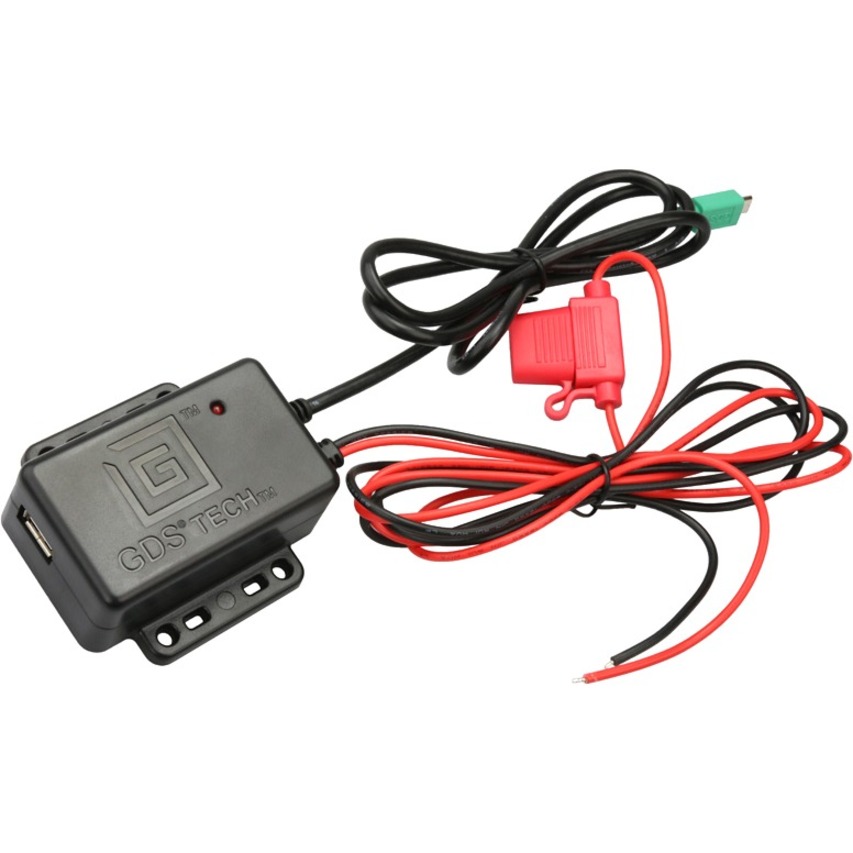

Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-OTGAU adapter enables phones and tablets to charge and utilize the OTG accessory mode at the same time. This allows for the use of accessories such as keyboards, a mouse, USB 2.0 Flash drive, barcode scanners, printers, and other devices supported in the USB-IF OTG specification. Eliminating the need for a separate charger, the adapter allows the tablet to be in both host mode and accept a charge of up to 1.67A (at ~5V). The internal charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host device. The adapter solves the desire to support peripherals and charge through the single Micro-USB port on the host device.
Technical Information
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
- 40 V DC
- 8 V DC
Output Voltage:
5 V DC
Maximum Output Current:
2.50 A
Miscellaneous
Compatibility:
Samsung Galaxy Tablet PCs:
- Tab A (8.0", 9.7", 10.1")
- Tab E (8.0")²
- Tab E (9.6")
- Tab S2 (8.0" , 9.7")
- Tab 4 (8.0" , 10.1")
- Tab S (8.4" , 10.5")
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0793442006982
UPC:
793442006982
EAN:
0793442006982
UNSPSC:
39121006
Get help from a Barcoding Expert!
The RAM Mount RAM-GDS-CHARGE-OTGAU Spare Parts is also known as
RAM-GDS-CHARGE-OTGAU
