Device Supported:
Motorcycle
RAM Mount RAM-B-309-1 Products
Part Number:
RAM-B-309-1
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-309-1 Products Overview

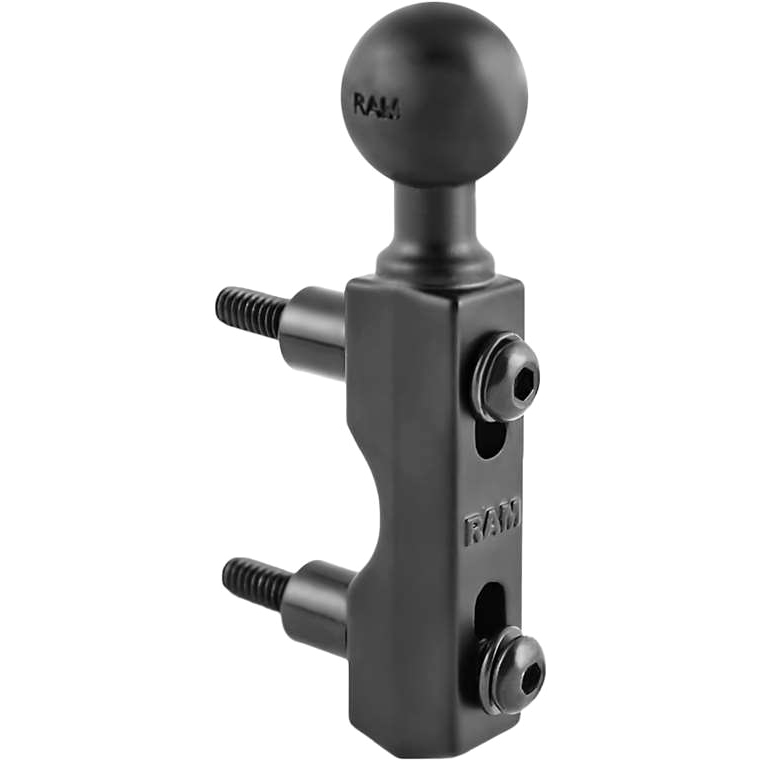

The RAM-B-309-1 connects to your handlebar clutch/brake clamp, left or right side, and holds one 1" diameter mounting ball. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Product Information
Physical Characteristics
Product Material:
Powder Coated Marine-grade Aluminum
Weight (Approximate):
4.80 oz
Miscellaneous
Compatibility:
RAM® Double Socket Arm with Diamond Plate RAM® Double Socket Arm with Retention Knob RAM® Double Socket Arm with Retention Knob RAM® Pin-Lock™ Double Socket Arm RAM® X-Grip® Universal Holder for 7"-8" Tablets with Double Socket Arm RAM® Composite Double Socket Arm RAM® Double Socket Arm with Diamond Plate RAM® Double Socket Arm with Round Plate RAM® Double Socket Arm with Retention Knob RAM® Double Socket Arm with Universal Action Camera Adapter
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442002809
UPC:
793442002809
EAN:
0793442002809
UNSPSC:
31162307
