RAM Mount RAM-B-202-379-M616U CCTV Camera Mount
Part Number:
RAM-B-202-379-M616U
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-202-379-M616U CCTV Camera Mount Overview

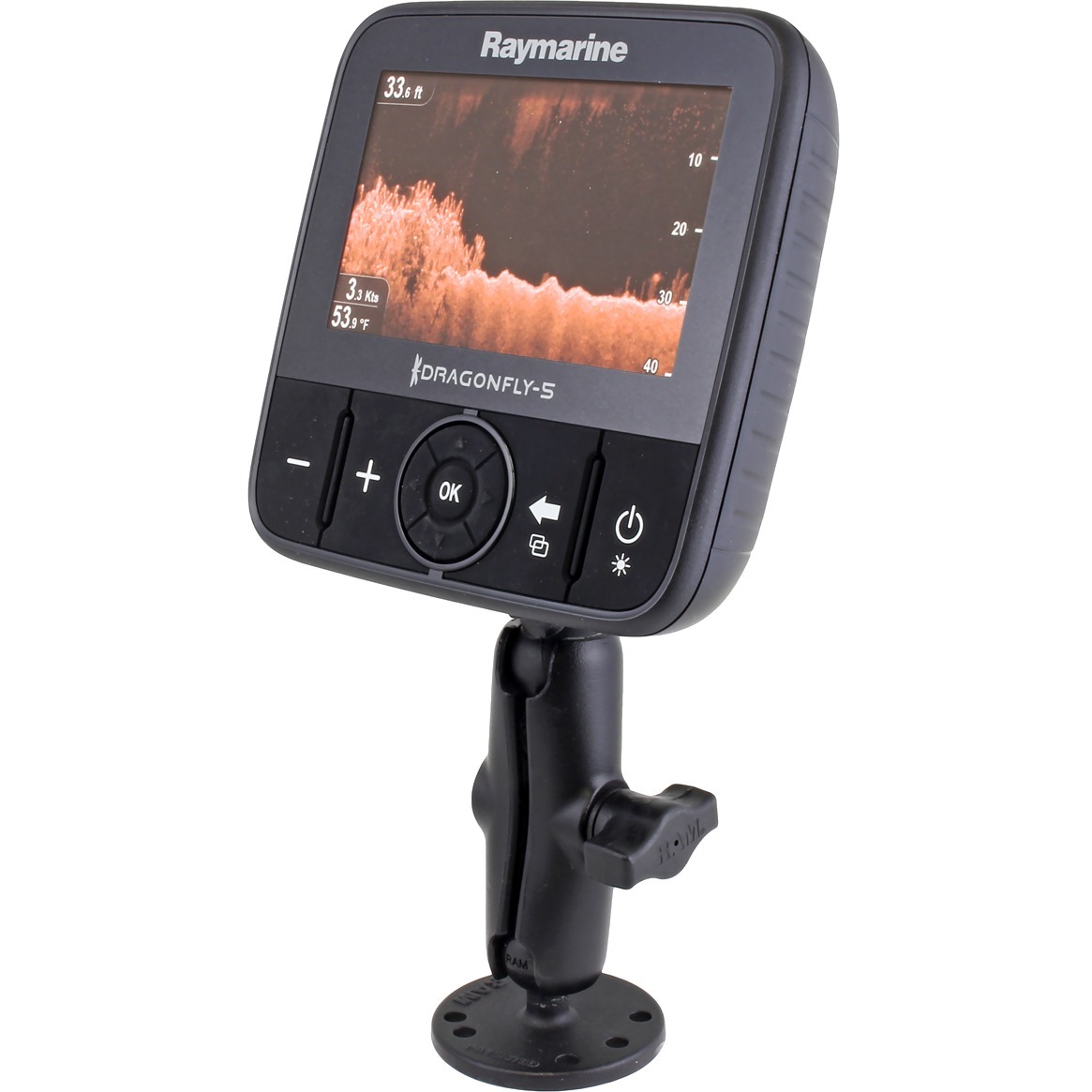

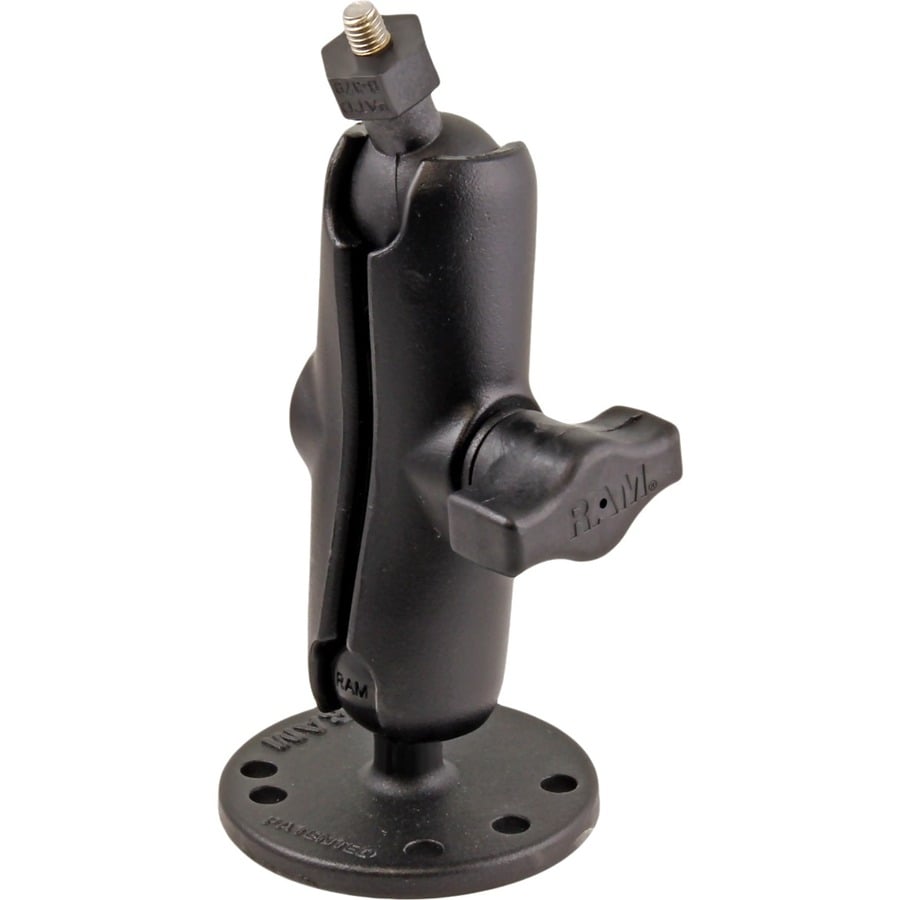

The RAM-B-202-379-M616U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.
Product Information
Physical Characteristics
Product Material:
Powder Coated Marine-grade Aluminum
Weight (Approximate):
7.68 oz
Miscellaneous
Compatibility:
Raymarine Dragonfly-7 PRO Raymarine Dragonfly-5 M Raymarine Dragonfly-5 DVS Raymarine Dragonfly-5 Pro Raymarine Dragonfly-4 DV Raymarine Dragonfly-4 DVS Raymarine Dragonfly-4 PRO Raymarine WiFish RAM® Mari-Nut™ Rubber Expansion Mounting Hardware RAM® Mari-Rivet™ Aluminum Pop Rivets
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442947995, 0818208672390, 0997252441432, 0999567968383
UPC:
793442947995, 818208672390, 997252441432, 999567968383
EAN:
0793442947995, 0818208672390, 0997252441432, 0999567968383
UNSPSC:
43191615
The RAM Mount RAM-B-202-379-M616U CCTV Camera Mount is also known as
RAM-B-202-379-M616U
