Device Supported:
Motorcycle
RAM Mount RAM-B-174 Products
Part Number:
RAM-B-174
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-174 Products Overview

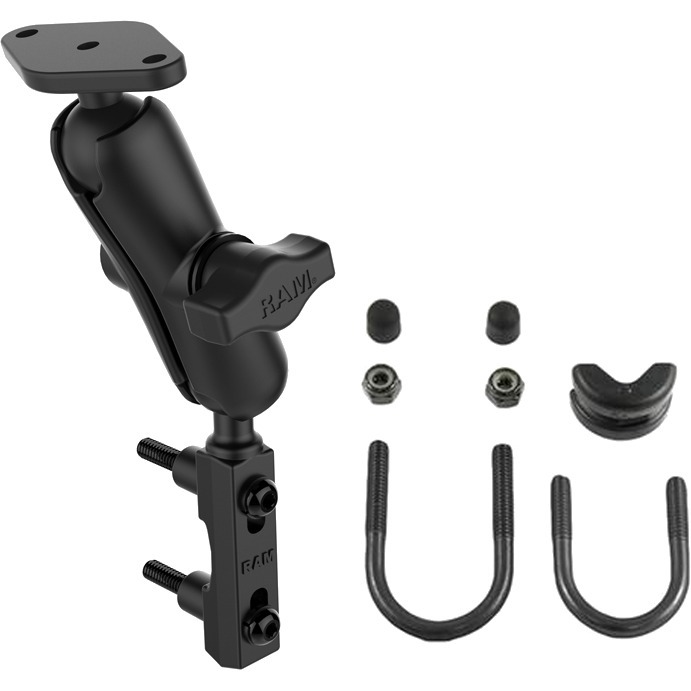

The RAM-B-174 consists of a 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The RAM-B-174 can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter.To see if the RAM-B-174 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Product Information
Physical Characteristics
Product Material:
Powder Coated Marine-grade Aluminum
Weight (Approximate):
0.85 lb
Miscellaneous
Package Contents:
Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate 1 x Base/ball adaptor (attaches directly to cradle) 1 x Standard size double socket arm 1 x Mounting base (mounts to either brake/clutch reservoir or rail/handlebar) 1 x Hardware for mounting to either brake/clutch reservoir or rail/handlebar
Compatibility:
RAM® Torque™ 1 ½" - 2" Diameter Rail Base
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442924767
UPC:
793442924767
EAN:
0793442924767
UNSPSC:
43191615
