Device Supported:
Camera
RAM Mount RAM-B-149Z-C1 Products
Part Number:
RAM-B-149Z-C1
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-149Z-C1 Products Overview

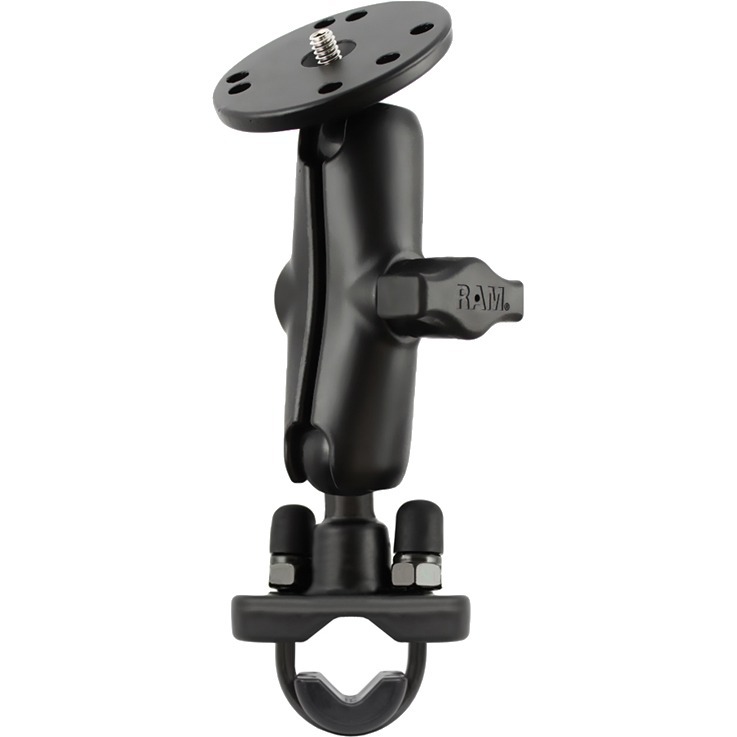

The RAM-B-149Z-C1 consists of a zinc coated u-bolt base, standard size double socket arm and universal 1/4"-20 thread, centered on a 2.5" diameter plate. The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Product Information
Physical Characteristics
Product Material:
- Powder Coated Marine-grade Aluminum
- Zinc
Weight (Approximate):
0.88 lb
Miscellaneous
Package Contents:
Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud Hardware
Compatibility:
RAM® Triple Ball Adapter RAM® 12" Long Rigid Pipe with Dual Ball Ends RAM® 18" Double Ball Extention Pipe with Double Socket Arm RAM® Composite Double Ball Swivel Adapter RAM® Double Ball Adapter
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442003646
UPC:
793442003646
EAN:
0793442003646
UNSPSC:
43191615
