RAM Mount RAM-B-138-GA25L-ENT1U Products
RAM Mount Parts Products Model Overview

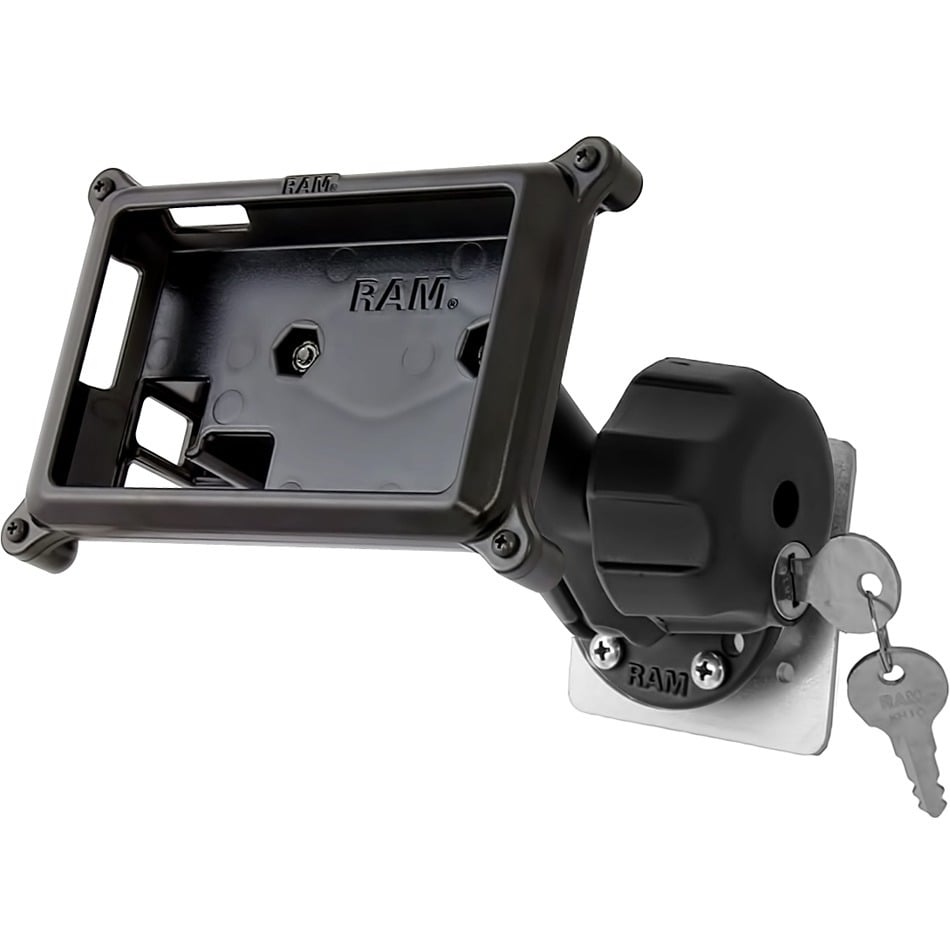

The RAM-B-138-GA25L-ENT1U consists of a backer plate, 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, locking knob, diamond adapter base and custom high strength composite locking case. The locking case features the ability to secure your Garmin nuvi in place, adding much needed protection and enables full access to the screen, power plug, and memory card slot. The case consists of a front and back cover that can be secured together using standard pop rivets or security screws (not included.) The RAM cradle features a unique cable retention system that prevents accidental unplugging of the USB cable. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm locking knob, you can move the Garmin nuvi flat surface mount to your optimum viewing position.
- Marine-grade Aluminum
- Composite
- Steel
- Locking Drill-Down Mount for Garmin nuvi 200 Wide Series + More
- Assembly Hardware
- 2 x Keys
- 1 x 3" x 3" Steel Backing Plate
- 4 x #10-24 x 1" Thread Locking Screws
- 4 x #10-24 Nylock Nuts
- nuvi 200W
- nuvi 205W
- nuvi 250W
- nuvi 255W
- nuvi 260W
- nuvi 265W
- nuvi 265WT
- nuvi 285WT
- nuvi 2455LMT
- nuvi 2475LT
- nuvi 2495LMT
- nuvi 465T
