Device Supported:
Camera
RAM Mount RAM-B-108B-A-366 Products
Part Number:
RAM-B-108B-A-366
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-108B-A-366 Products Overview

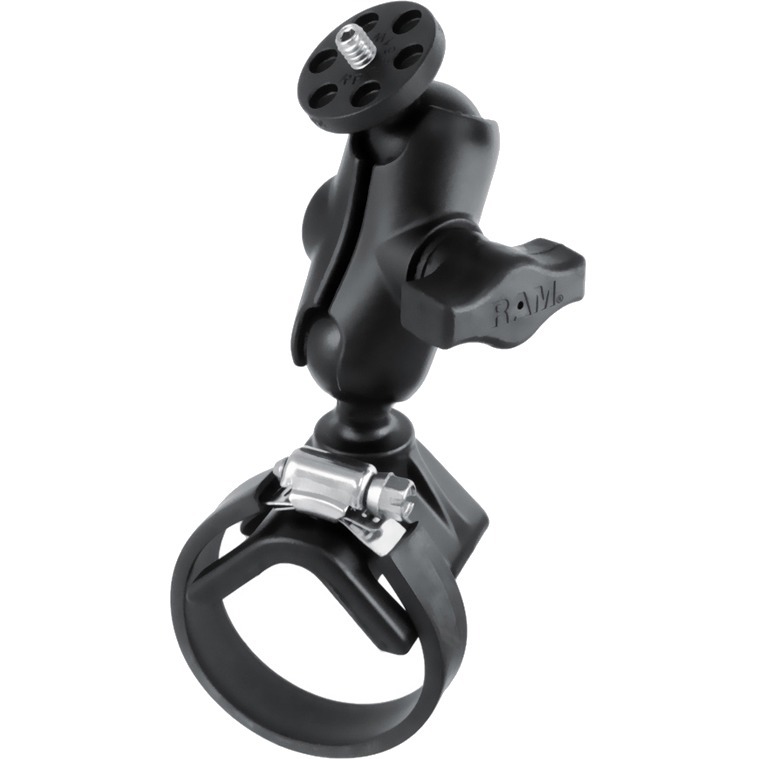

The RAM-B-108B-A-366 consists of a v-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded stell stud. The base accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
Product Information
Physical Characteristics
Product Material:
Powder Coated Marine-grade Aluminum
Weight (Approximate):
0.68 lb
Miscellaneous
Package Contents:
Strap Hose Clamp Mount with 1/4"-20 Camera Adapter 1 x 6" long metal strap 1 x 8" long metal strap 1 x 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail 1 x Short Double Socket Arm 1 x 1" Ball with 1/4"-20 Camera Threaded Adapter
Compatibility:
RAM® Triple Ball Adapter RAM® 12" Long Rigid Pipe with Dual Ball Ends RAM® 18" Double Ball Extention Pipe with Double Socket Arm RAM® Composite Double Ball Swivel Adapter RAM® Double Ball Adapter
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442942686
UPC:
793442942686
EAN:
0793442942686
UNSPSC:
31162305
