Device Supported:
Motorcycle
RAM Mount RAM-B-103-A-238CHU Products
Part Number:
RAM-B-103-A-238CHU
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-B-103-A-238CHU Products Overview

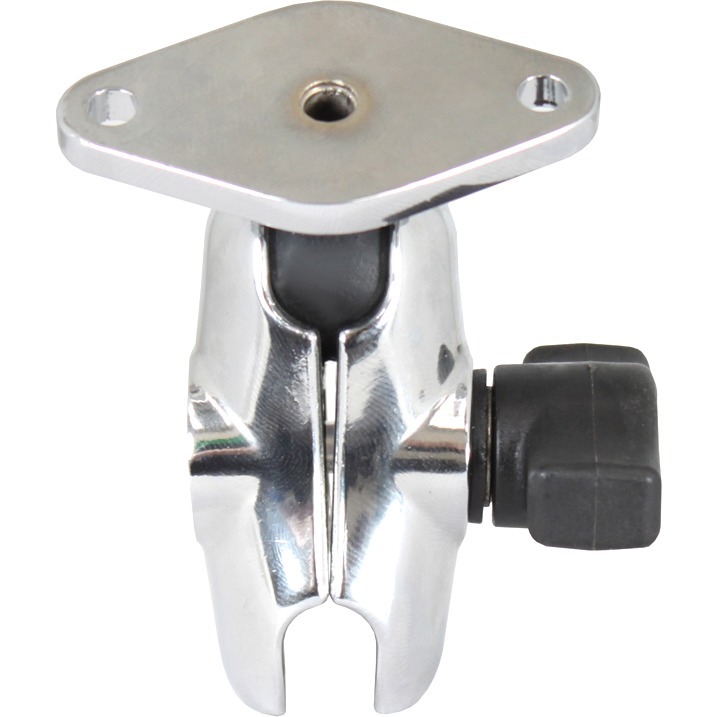

The RAM-B-103-A-238CHU consists of a CHROME diamond base and SHORT double socket arm that will accept 1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
Product Information
Physical Characteristics
Product Material:
- Marine-grade Aluminum
- Chrome
Length:
3"
Weight (Approximate):
0.38 lb
Miscellaneous
Compatibility:
RAM® Torque™ 1 ½" - 2" Diameter Rail Base RAM® Chrome Motorcycle Brake/Clutch Reservoir Double Ball Base RAM® Chrome Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter RAM® Chrome Round Plate with Ball RAM® Chrome Diamond Ball Base RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base RAM® Pin-Lock™ Security Knob for B Size Socket Arms RAM® Triple Ball Adapter RAM® 12" Long Rigid Pipe with Dual Ball Ends RAM® Composite Double Ball Swivel Adapter RAM® Double Ball Adapter
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0793442937309
UPC:
793442937309
EAN:
0793442937309
UNSPSC:
31162307
