RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory

RAM Mount - UNPKD RAM POWERED KEYED LOCKING CRADLE AND PIN-LOCK MOUNT FOR SONIM XP8
  • Bundle for Sonim XP8 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Spring-loaded, powered RAM® EZ-Roll'r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
  • Key lock and RAM® Pin-Lock™ for theft deterrence
  • RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty
Read More

Need a different version? See all RAM Mount Parts Products

$385.37
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory
RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory
RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory
RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-138-S-SNM2PL-V7B1U Accessory Overview

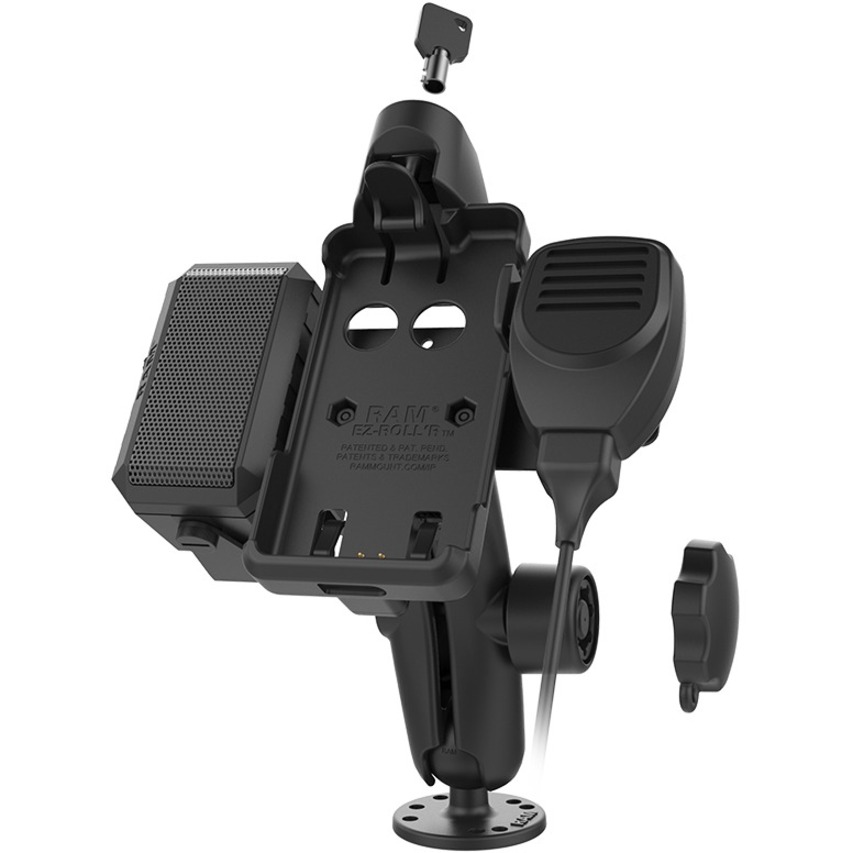

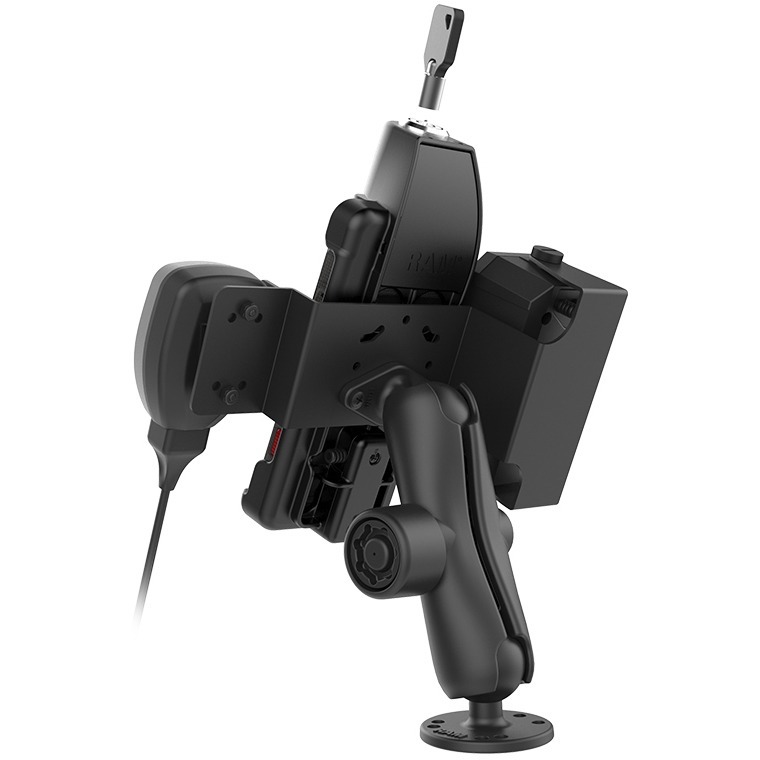

This Sonim XP8 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Cradle for Sonim XP8, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP8 and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.

Technical Information
Recommended Usage:
Smartphone
Physical Characteristics
Product Material:
  • Marine-grade Aluminum
  • High Strength Composite
  • Powder Coated Steel
Weight (Approximate):
4.1 lbs.
Miscellaneous
Additional Information:
  • Input Voltage: 10V - 30V DC
  • Output Voltage: 5-9VDC
  • Output Current: 2.5A max
  • Input Connector: Charger: Female USB Type A
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C


Speaker Specifications

  • Independently adjustable volume knob
  • Max volume level: 100dB
  • 8Ω / 10W rated speaker

Hole Pattern

  • 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter

Weight Capacity

  • Standard Use: 4 lbs
    Heavy-Duty Use: 3 lbs
Package Contents:
  • Double Ball Mount for Sonim XP8
  • Speaker
  • Microphone
  • Mounting Bracket
  • 2 x Keys for Holder
  • 1 x Key for Locking Knob
  • 1 x 10-pin to 3.5 Audio Adapter Cable
  • 1 x Modular Hardwire Charger
Compatibility:
Sonim XP5s Smartphone
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Limited Warranty Details:
RAM Components backed by lifetime warranty; cradle backed by a 3-year warranty
Item Numbers
GTIN: 0793442401961
UPC: 793442401961
EAN: 0793442401961
UNSPSC: 31162800
