Recommended Usage:
Smartphone
RAM Mount RAM-138-S-SNM1PL-V7B1U Docks and Cradles
Part Number:
RAM-138-S-SNM1PL-V7B1U
Model:
Parts
RAM Mount Parts Products Model Overview
Products and parts from RAM-Mount.
RAM Mount RAM-138-S-SNM1PL-V7B1U Docks and Cradles Overview

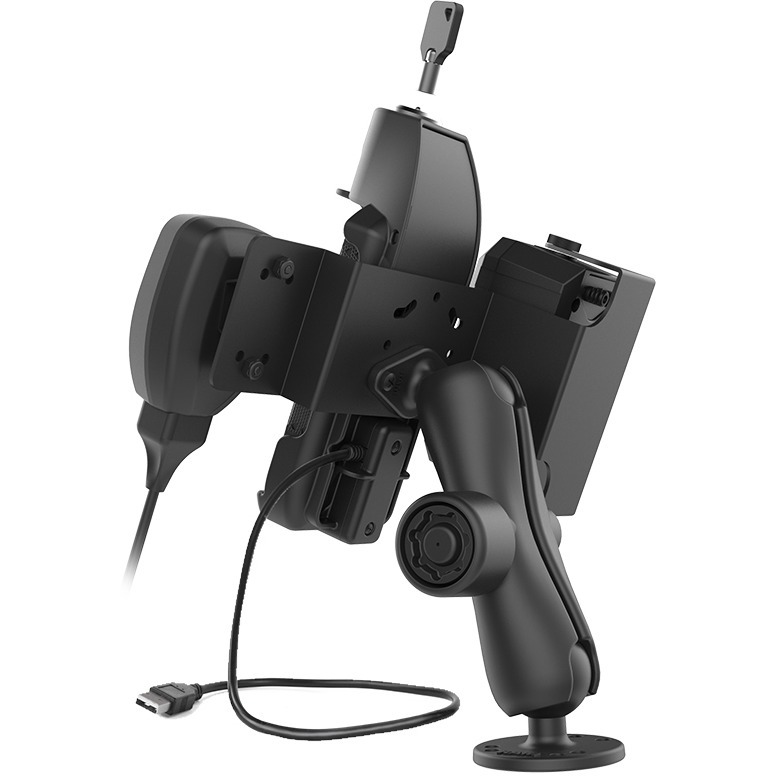

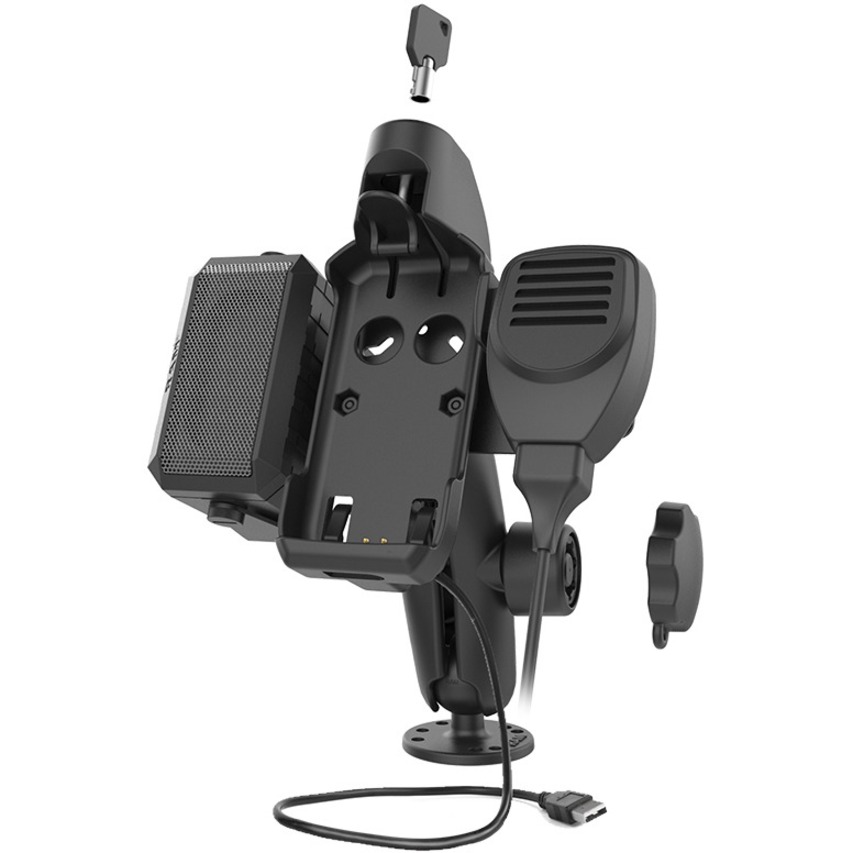

This Sonim XP5s bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Cradle for Sonim XP5s, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5s and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
Technical Information
Physical Characteristics
Product Material:
- Marine-grade Aluminum
- High Strength Composite
- Powder Coated Steel
Weight (Approximate):
4.15 lbs.
Miscellaneous
Additional Information:
- Input Voltage: 10V - 30V DC
- Output Voltage: 5-9VDC
- Output Current: 2.5A max
- Input Connector: Charger: Female USB Type A
- Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length: .2 Meters
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Plate Size: 2.5" Diameter
- Ball Size: C Size (1.5")
- Socket-to-Socket Length: 4.66"
Speaker Specifications
- Independently adjustable volume knob
- Max volume level: 100dB
- 8Ω / 10W rated speaker
Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Weight Capacity
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
Package Contents:
- Double Ball Mount for Sonim XP5s
- Speaker
- Microphone
- Mounting Bracket
- 2 x Keys for Holder
- 1 x Key for Locking Knob
- 1 x 10-pin to 3.5 Audio Adapter Cable
- 1 x Modular Hardwire Charger
Compatibility:
Sonim XP5s Smartphone
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Limited Warranty Details:
RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty
Item Numbers
GTIN:
0793442410062
UPC:
793442410062
EAN:
0793442410062
UNSPSC:
31162800
