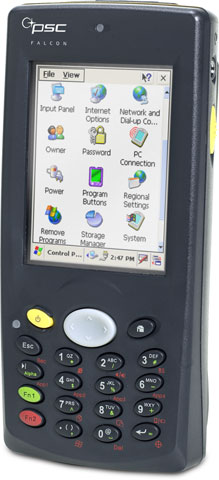

PSC 4220-1000 Mobile Handheld Computer

PSC Falcon 4220 - Wireless Portable Data Terminal (No Scanner). Order cradle, cables & power supply separately. See accessories.
Powerful PDAs with an Integrated Barcode scanner

The PSC Falcon 4220 is PSC's next generation PDA device, combining a compact, ruggedized form factor with the flexibility of the Microsoft CE .NET operating system. The Falcon 4220 is designed for retail, warehousing and logistics applications where maximum performance and durability is required in a compact handheld device. The PSC Falcon 4220 features the Intel XScale PXA255 400 MHz processor and the Windows CE .NET operating system, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise.

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 4220
  • Product Name: Falcon 4220 Handheld Terminal
  • Product Line: Falcon

Technical Information

  • Connectivity Technology: Wireless
  • Drop Specification: 48" To Concrete

Physical Characteristics

  • Height: 1.3"
  • Width: 3.1"
  • Length: 6.6"
  • Weight (Approximate): 12.70 oz

Other

  • Package Contents:
    • Falcon 4220 PDA Handheld Terminal
    • Battery
    • Power Supply
    • USB Cable
    • Headphones
    • US Power Cord
    • Falcon Desktop Utility (FDU)
    • Falcon Management Utility (FMU)<
    • Falcon 4220 PDA Handheld Terminal
    • Battery
    • Power Supply
    • USB Cable
    • Headphones
    • US Power Cord
    • Falcon Desktop Utility (FDU)
    • Falcon Management Utility (FMU)<
  • Certifications & Standards:
    • Electrical:
    • EN60950
    • UL60950
    • CSA 60950
    • Battery:
    • EN60950
    • UL60950-1
    • IATA/UN
    • Emissions:
    • FCC Part 15 - B
    • VCCI
    • CISPR 22
    • Radio:
    • FCC Part 15 - C
    • R&TTE
    • IC
    • IDA

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • CompactFlash (CF) Card
    • Secure Digital (SD) Card

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • 802.1x
    • EAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Battery Information

  • Battery Capacity: 1800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Software

  • Operating System: Windows CE .NET

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 17

I/O Expansions

  • Expansion Slot Type: CompactFlash Type II

Full specifications (PDF)

Full specifications (PDF)

Brand PSC
Model Falcon 4220
Style Phone-size
RAM Memory 64 MB
Display Resolution 240 x 320
Operating System Windows CE .NET
Scanner Type No Scanner
Data Collection Type Wireless

Recommended Accessories for Model: PSC Falcon 4220 Mobile Handheld Computer
PSC (890500040)
Hand Straps (for the Falcon 4220)
Temporarily out of stock; available to order
$20.40
+ Add to Quote
Datalogic (4220-USB-STARTER)
Falcon 4220 USB Starter Kit. Includes everything you need to run your Falcon 4220: charging/communications cradle and USB cable.
Please Call for Pricing
or to Purchase

The PSC 4220-1000 is also known as PSC-42201000 or 42201000 .
