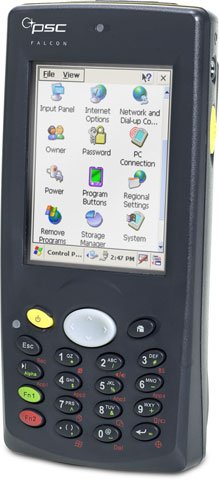

PSC 4220-0001 Mobile Handheld Computer

PSC Falcon 4220 - Batch Portable Data Terminal (with Scanner). Order cradle, cables & power supply separately. See accessories.
Powerful PDAs with an Integrated Barcode scanner

The PSC Falcon 4220 is PSC's next generation PDA device, combining a compact, ruggedized form factor with the flexibility of the Microsoft CE .NET operating system. The Falcon 4220 is designed for retail, warehousing and logistics applications where maximum performance and durability is required in a compact handheld device. The PSC Falcon 4220 features the Intel XScale PXA255 400 MHz processor and the Windows CE .NET operating system, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise.

Technical Information

  • Operating System: Windows CE .NET
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • UPC-E
    • UCC/EAN 128
    • EAN-8
    • JAN-8
    • EAN-13
    • UPC-A
    • IATA-25
    • ISBN
    • Codabar (NW7)
    • Matrix 2 of 5
    • MSI/PLESSEY
    • Korea Code 35
    • Italian Pharmacode
    • Industrial 2 of 5
    • Code 11
    • Code 32
    • Code 39
    • Code 93
    • Code 128
    • Interleaved 2 of 5
    • Code 4
    • China Post
    • Datalogic 25

General Information

  • Manufacturer: PSC Inc.
  • Product Line: Falcon
  • Product Name: Falcon 4220 Handheld Terminal

Physical Characteristics

  • Display: 3.5" Color - Transflective TFT LCD
  • Display Resolution: 240 x 320 Graphic
  • User Accessible Expansion Slot:
    • CF Card Type 2
    • SD Card Slot
  • Keyboard: 17 Key Integrated
  • Battery Capacity: 1800 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.3" (33mm) x 3.1" (79mm) x 6.6" (168mm)
  • Weight: 12.7 oz - With Battery

Agency Approvals

  • Agency Approvals:
    • EN60950
    • UL60950
    • CSA 60950
    • UL60950-1
    • IATA/UN
    • FCC Part 15 - B
    • VCCI
    • CISPR 22
    • CDRH Class II
    • IEC 60825-1
    • Class 2

Other

  • Package Contents:
    • Falcon 4220 PDA Handheld Terminal
    • Battery
    • Power Supply
    • USB Cable
    • Headphones
    • US Power Cord
    • Falcon Desktop Utility (FDU) for security & configuration
    • Falcon Management Utility (FMU) for remote device managment & software distributions

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 4' To Concrete Multiple

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand PSC
Model Falcon 4220
Display Resolution 240 x 320
Style Phone-size
RAM Memory 64 MB
Operating System Windows CE .NET
Scanner Type Laser
Data Collection Type Batch

Recommended Accessories for Model: PSC Falcon 4220 Mobile Handheld Computer
PSC (890500040)
Hand Straps (for the Falcon 4220)
Temporarily out of stock; available to order
$20.40
+ Add to Quote
Datalogic (4220-USB-STARTER)
Falcon 4220 USB Starter Kit. Includes everything you need to run your Falcon 4220: charging/communications cradle and USB cable.
Please Call for Pricing
or to Purchase

The PSC 4220-0001 is also known as PSC-42200001 or 42200001 .
