Powerware ZP23410000XX000 Products

Part Number: ZP23410000XX000
Model: Parts
Add to My Shopping List Add to Compare
$65,812.63
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hardwired
Receptacle Type
Hard Wire 4-wire
Input Voltage
220 V AC
Output Voltage
228 V AC208 V AC120 V AC

Product Description:

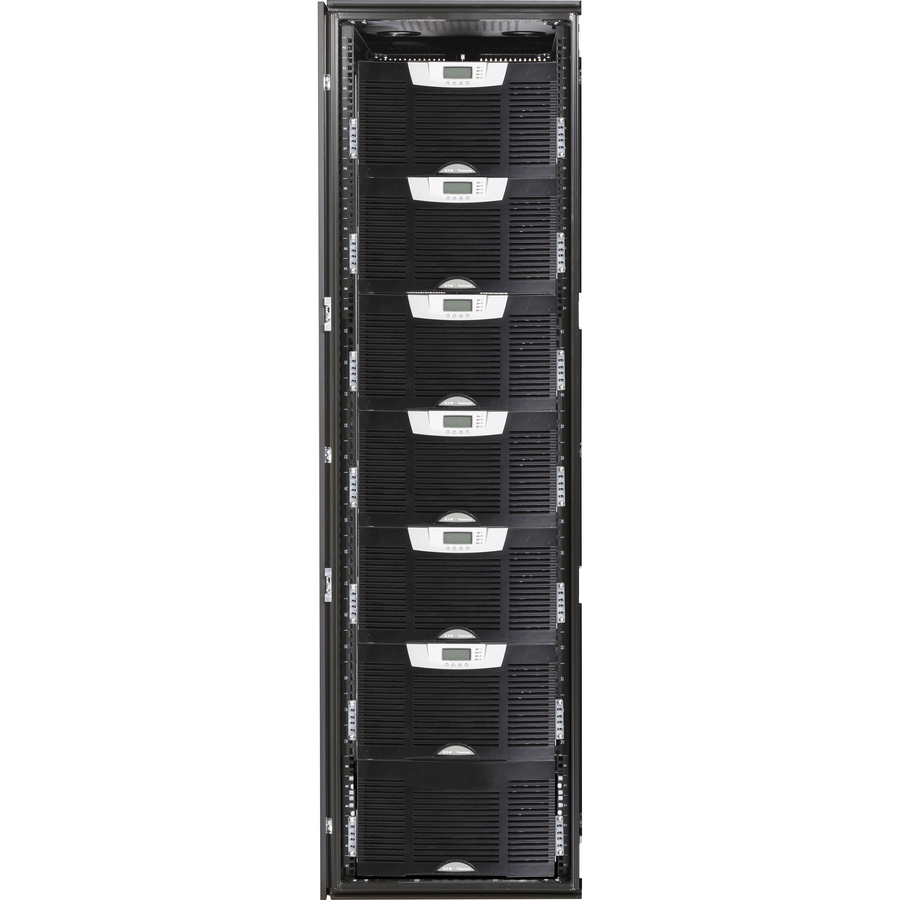

  BladeUPS 48KVA 208V 3PH Bottom entry
Explore all Powerware Parts Accessories
Add to Quote
Powerware ZP23410000XX000 Products
Powerware ZP23410000XX000 Products
Powerware ZP23410000XX000 Products Powerware ZP23410000XX000 Products

Powerware Parts Accessory Model Overview

Products and parts from Powerware.
Powerware ZP23410000XX000 Products Overview

The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS expands power protection from 12 to 60 kW in a single 19-inch rack while reducing energy and cooling costs.

Technical Information
Plug/Connector Type:
Hardwired
Receptacle Type:
Hard Wire 4-wire
Power Description
Input Voltage:
220 V AC
Output Voltage:
  • 228 V AC
  • 208 V AC
  • 120 V AC
Output Frequency:
50 Hz
Management
Bypass Switch:
Automatic
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
  • 2 x X-Slot
  • 4 x Communications Slot
Battery Information
Number of Batteries:
160
Battery Characteristics:
Maintenance-free/Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
13 Minute
Physical Characteristics
Form Factor:
Tower
Height:
81"
Width:
24"
Depth:
42"
Weight (Approximate):
1629.22 lb
Miscellaneous
Package Contents:
  • Preassembled BladeUPS - Bottom Entry 48 kW, 208V
  • 1 x S-Series Rack on a Heavy-duty Shipping Pallet with Unloading Ramp BladeUPS Parallel bar and Wireway
  • 4 x BladeUPS Modules
  • Intelligent Power Software CD
  • BladeUPS Installation and User Manual
  • Rack Hardware Kit
  • Front and Rear Rack Aesthetic Plates
Software Included:
Eaton Intelligent Power Software
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0743172078735
UPC: 743172078735
EAN: 0743172078735
UNSPSC: 39121011
The Powerware ZP23410000XX000 Products is also known as POW-ZP23410000XX000
