Powerware EMA327-10 Products

Part Number: EMA327-10
Model: Parts
$1,798.64

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
PDU Type
Switched
Plug/Connector Type
NEMA L21-30P
Plug/Connector Detail
1 x NEMA L21-30P
Receptacle Type
IEC 60320 C13IEC 60320 C19

Product Description:

  EPDU MA 38U-C IN: L21-30P 24A 3P OUT: 18XC13: 6XC19

Powerware Parts Accessory Model Overview

Products and parts from Powerware.
Powerware EMA327-10 Products Overview

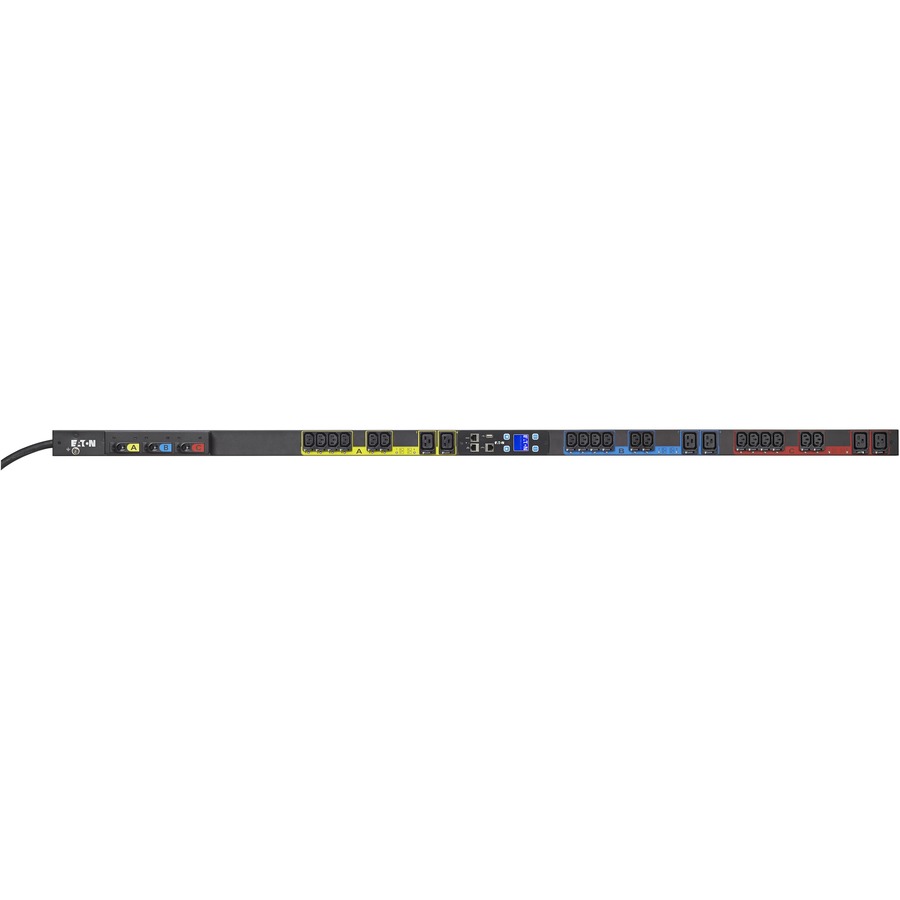

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
  • Outlet switching for on, off and reboot control to reduce management costs
  • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
  • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
  • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
  • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
  • IEC outlet grip plug retention secures plugs in place using standard cables
Technical Information
PDU Type:
Switched
Plug/Connector Type:
NEMA L21-30P
Plug/Connector Detail:
1 x NEMA L21-30P
Receptacle Type:
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail:
  • 18 x IEC 60320 C13
  • 6 x IEC 60320 C19
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
120 V AC - 208 V AC
Output Voltage:
230 V AC
Power Rating (Watt):
8640 W
Input Current:
24 A
Circuit Breaker:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Physical Characteristics
Color Family:
Black
Product Color:
Black
Mounting Orientation:
Vertical
Rack Height:
38U
Cord Length:
10 ft
Height:
66.5"
Width:
2.1"
Depth:
2.6"
Miscellaneous
Certifications & Standards:
  • cUL
  • TAA
Country of Origin:
United States
Item Numbers
GTIN: 0786685932057
UPC: 786685932057
EAN: 0786685932057
UNSPSC: 39121017
