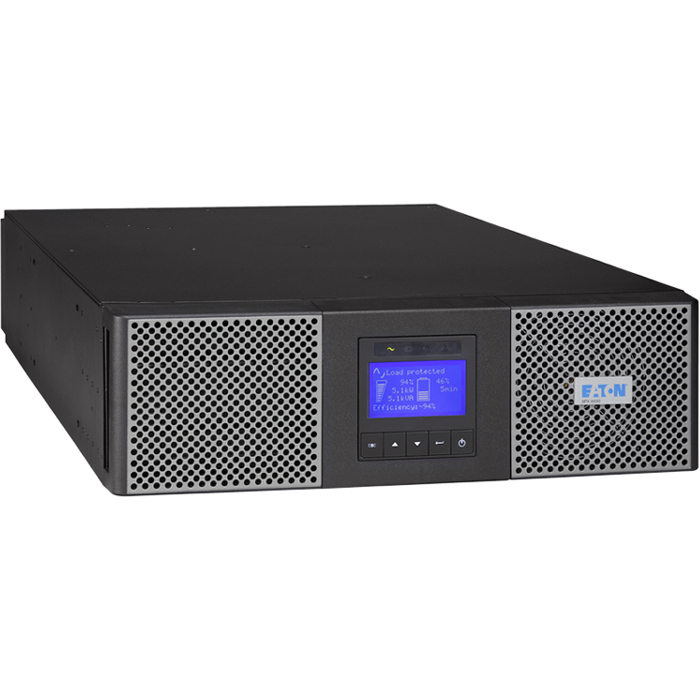

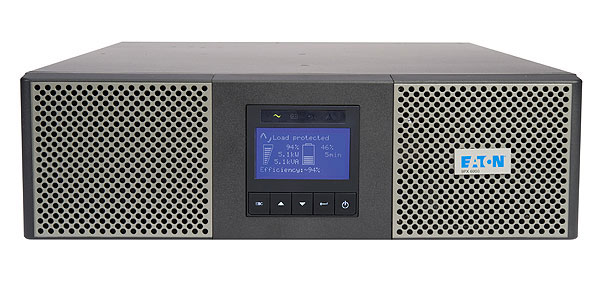

Powerware 9PX5KTF5 UPS

Part Number: 9PX5KTF5
Model: 9PX
Add to My Shopping List Add to Compare
$8,499.86

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA 5-20RNEMA L6-20RNEMA L6-30RHardwired
Receptacle Detail
18 x NEMA 5-20R2 x NEMA L6-20R1 x NEMA L6-30R
Transfer Time
0 ns

Product Description:

  Eaton 9PX5K 5 kVA UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC Output - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R, Hardwired
Explore all Powerware 9PX Accessories
Add to Quote
Powerware 9PX5KTF5 UPS
Powerware 9PX5KTF5 UPS
Powerware 9PX5KTF5 UPS Powerware 9PX5KTF5 UPS
Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
  • NEMA 5-20R
  • NEMA L6-20R
  • NEMA L6-30R
  • Hardwired
Receptacle Detail:
  • 18 x NEMA 5-20R
  • 2 x NEMA L6-20R
  • 1 x NEMA L6-30R
Transfer Time:
0 ns
Overload Protection:
Yes
Power Description
Load Capacity (VA):
5000 VA
Input Voltage:
  • 110 V AC
  • 220 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
  • 120 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Management
Network Management:
SNMP Manageable
Bypass Switch:
Optional
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
Battery Information
Battery Characteristics:
Maintenance-free/Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3 Minute
Physical Characteristics
Form Factor:
Rack/Tower
Rack Height:
6U
Height:
10.2"
Width:
17"
Depth:
28"
Weight (Approximate):
200.62 lb
Miscellaneous
Package Contents:
  • 9PX5K 5 kVA UPS
  • 9PXTFMR5 120V Stepdown Transformer
  • Network-MS Web/SNMP Card
  • 4-Post Rail Kit
  • User Manual
  • Quick Start Guide
  • Tower Pedestals
  • Intelligent Power Software Suite CD
  • RS-232 Serial Cable
  • USB Cable
  • Cable Gland for Hardwire Conection
  • Phillips Head Screw Driver
Software Included:
Eaton Intelligent Power Software
Country of Origin:
Philippines
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012304733379, 0743172039774, 0818275004032
UPC: 012304733379, 743172039774, 818275004032
EAN: 0012304733379, 0743172039774, 0818275004032
UNSPSC: 39121011
