Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage system.
Technical Information
- Receptacles:
- 1 x NEMA L6-30R
- 1 x NEMA L14-30R
- 6 x NEMA 5-20R
- Plug/Connector Type: NEMA L6-30P
- Interfaces/Ports:
- Switching Time: 0 ns
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: 9PX
- Brand Name: Eaton
- Manufacturer: Eaton Corporation

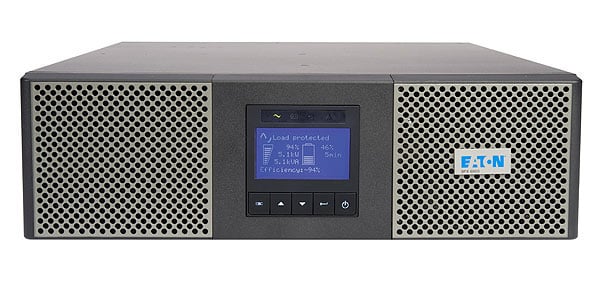

- Product Name: 9PX5K 5kVA UPS
Physical Characteristics
- Height: 10.2"
- Width: 17"
- Depth: 28"

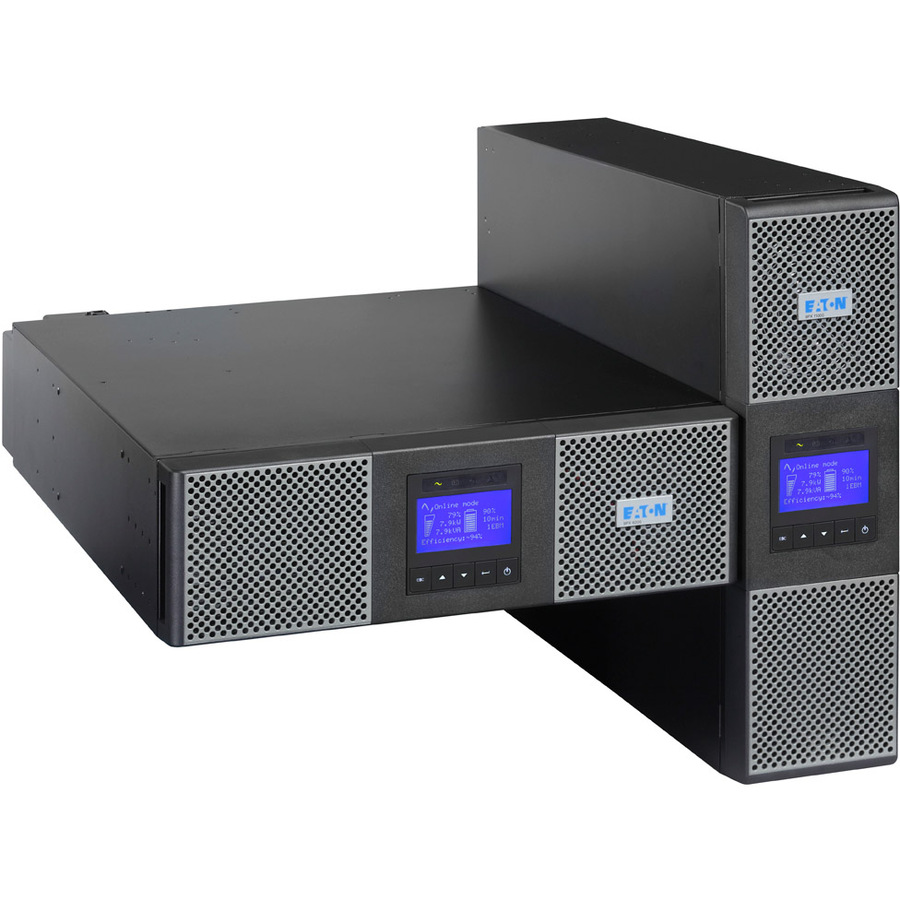

- Form Factor: 6U Tower/Rack Mountable
- Weight (Approximate): 202.83 lb
Other
- Package Contents:
- 9PX5K 5kVA UPS
- 9PXPPDM1 PowerPass Distribution Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
- 9PX5K 5kVA UPS
- 9PXPPDM1 PowerPass Distribution Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Software Included: Eaton Intelligent Power Software
Power Description
- Input Voltage Range:
- 100 V AC to 276 V AC
- 120 V AC Nominal
- 208 V AC Nominal
- 200 V AC Nominal
- 230 V AC Nominal
- 240 V AC Nominal
- Load Capacity: 5 kVA/4.50 kW
- Input Voltage:
- Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- 200 V AC Nominal
- 220 V AC Nominal
- 230 V AC Nominal
- 240 V AC Nominal
- Current:
- Frequency: 50 Hz to 70 Hz Input
Battery Information
- Batteries: Sealed, Maintenance-free Lead Acid Hot-swappable
- Backup/Run Time:
- 0.05 Hour 4.50 kW Full Load
- 0.18 Hour 2.25 kW Half Load
Management
- Network Management: SNMP Manageable Included
- Bypass Switch: Internal
- Emergency Power OFF: Yes
- Overload Protection: Circuit Breaker
