Powerware 103003276-6591 UPS

Part Number: 103003276-6591
Model: 5115
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Receptacle Type
IEC 60320 C13
Receptacle Detail
4 x IEC 60320 C13
Dataline Protection
RJ-45
Transfer Time
4 ms

Product Description:

  5115 1500i RM
Explore all Powerware 5115 UPs
Add to Quote
Powerware 103003276-6591 UPS
Powerware 103003276-6591 UPS
Powerware 103003276-6591 UPS Powerware 103003276-6591 UPS

Powerware 5115 UPS Model Overview

5115 from Powerware.
Powerware 103003276-6591 UPS Overview

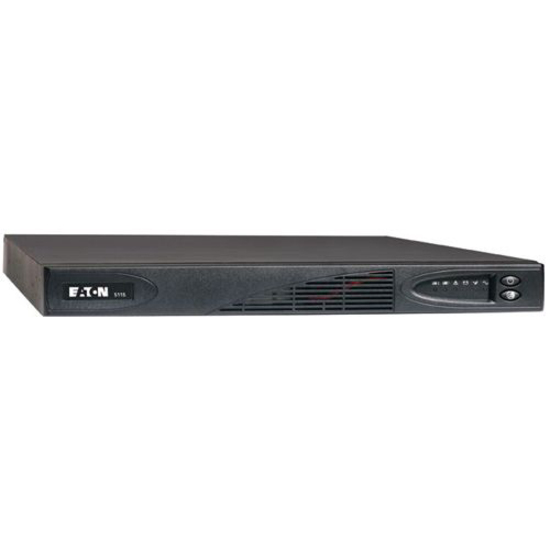

The Eaton 5115 Rackmount UPS provides surge protection and backup power ideal for rack servers, storage systems, network equipment and other critical devices. The unique form factor of the 5115 UPS adapts to 1U rackmount, a 0U side cabinet or wall-mount UPS applications. The 5115 UPS also corrects incoming voltage fluctuations, produces true sine wave output and significantly extends battery service life with ABM technology.

Technical Information
Receptacle Type:
IEC 60320 C13
Receptacle Detail:
4 x IEC 60320 C13
Dataline Protection:
RJ-45
Transfer Time:
4 ms
Power Description
Load Capacity:
1500 VA/1000 W
Input Voltage:
220 V AC
Output Voltage:
240 V AC
Input Current:
6.50 A
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
6
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
17 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
1.7"
Width:
17.3"
Depth:
22.8"
Weight (Approximate):
48.60 lb
Miscellaneous
Package Contents:
  • Powerware PW5115 1500i, 1500VA Rack-mountable UPS
  • Software Suite CD
  • RS-232 Serial Cable
  • USB Cable
  • User Guide
  • 4-post Rail Kit
  • Wall-mount Kit
  • 2 x IEC to IEC Power Cords
Additional Information:
  • Conserves valuable space with 1U rack height
  • Extends battery service life and optimizes battery recharge time with ABM technology
  • Delivers smooth, continuous power with Buck and Boost voltage regulation and pure sine wave output
  • Includes mounting hardware for 1U rackmount, 0U side cabinet, and wall-mount installations
  • Minimizes downtime with hot-swappable batteries
  • Delivers control and visibility with free power management software featuring an intuitive user interface
Certifications & Standards:
  • Safety Markings: C-Tick, CE, TUV, cUL, UL
  • Safety Conformance: UL1778, UL 497A (data line only); cUL (CAN/CSA C22.2, No. 107.1), EN 50091-1-1 and IEC 60950
  • EMC Compliance: EN 50091-2. FCC Part 15 subpart J Class A, ICES-003
Software Included:
Powerware Software Suite
Item Numbers
GTIN: 0790341047306
UPC: 790341047306
EAN: 0790341047306
UNSPSC: 39121011
