Powerware 05146632-5591 UPS

The Powerware 05146632-5591 UPS has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Powerware 5125 - 1500VA Line-Interactive UPS, RoHS - Tower Model
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Powerware 5125 UPS Model Overview
5125 from Powerware.
Powerware 05146632-5591 UPS Overview

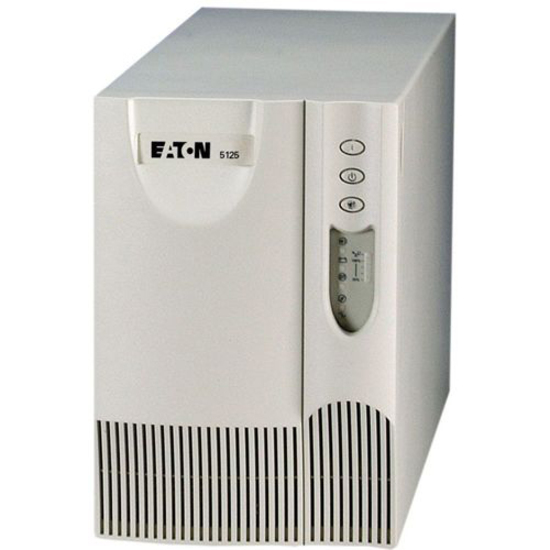

The Eaton 5125 Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems and network equipment. The 5125 UPS significantly extends battery service life with ABM technology and delivers smooth, continuous power with a pure sine wave output while regulating incoming voltage fluctuations. With watching extended battery modules, the 5125 UPS can provide additional battery runtime.

Technical Information
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Dataline Protection:
RJ-11
Bypass Switch:
Internal
Transfer Time:
4 ms
Power Description
Load Capacity:
1440 VA/1050 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
17 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
9.8"
Width:
6.4"
Depth:
18.4"
Form Factor:
Tower
Weight (Approximate):
50.70 lb
Miscellaneous
Package Contents:
  • Powerware PW5125 1440VA Tower UPS
  • Software Suite CD
  • RS-232 Serial Cable
  • USB Cable
  • User Guide
  • 4-post Rail Kit
  • Wall-mount Kit
Additional Information:
  • Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
  • Increases battery runtime capability with extended battery modules (EBMs)
  • Delivers pure sine wave output with Buck and Double Boost voltage regulation
  • Enables scheduled shutdowns and maximum backup power time for critical devices with Load Segments (separate receptacle groups)
Certifications & Standards:
  • Safety Certifications: UL, cUL, NOM, C-Tick, CE mark
  • EMC Compliance: FCC Part 15, EN50091-2, Class B
Software Included:
Powerware Software Suite
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 39121011
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Powerware 05146632-5591 UPS is also known as POW-051466325591
