Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
6 x NEMA 5-15R
Dataline Protection:
RJ-11
Powerware 5115 UPS Model Overview
5115 from Powerware.

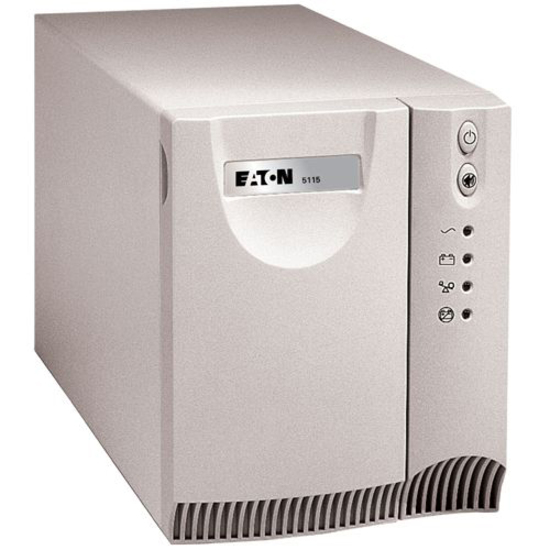

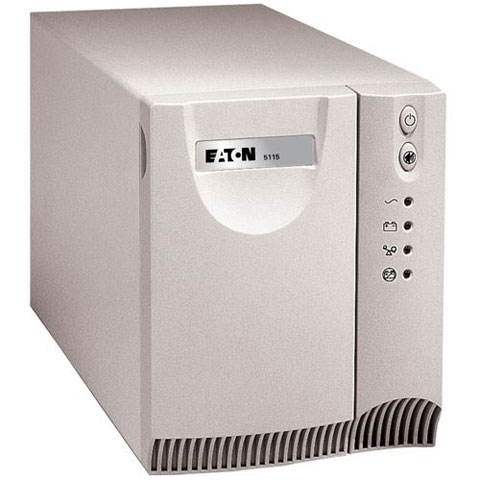

Powerware 05146566-5591 UPS Overview
The Eaton 5115 UPS offers surge protection and line-interactive backup power for entry level servers, small networking devices, point-of-sale (POS) devices and desktop PCs. The 5115 UPS significantly extends battery service life with ABM technology and delivers smooth, continuous power with a pure sine wave output while regulating incoming voltage fluctuations.
Technical Information
Power Description
Load Capacity:
1400 VA/950 W
Input Voltage:
110 V AC
Output Voltage:
120 V AC
Battery Information
Number of Batteries:
3
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid (SLA)
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
15 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
7.6"
Width:
5.9"
Depth:
15.4"
Form Factor:
Tower
Weight (Approximate):
37 lb
Miscellaneous
Package Contents:
- Powerware PW5115 1400VA Tower UPS
- Software Suite CD
- RS-232 Serial Cable
- USB Cable
- User Guide
Additional Information:
- Delivers smooth, continuous power with Buck and Boost voltage regulation and pure sine wave output
- Extends battery service life and optimizes battery recharge time with ABM technology
- Protects networked equipment from "back door" surges coming over LAN or telephone lines
- Minimizes downtime with hot-swappable batteries
- Delivers control and visibility with free power management software featuring an intuitive user interface
- Communicates via both serial and USB communications ports
Certifications & Standards:
- Safety Markings: UL, cUL, and CSA
- Safety Conformance: UL 1778, CAN/CSA C22.2, No. 107.1
- EMC Markings: FCC Class B
- Surge Suppression: ANSI C62.41 Category A (formerly IEEE 587)
- Immunity: IEC 801-2, -3, -4
Software Included:
Eaton Software Suite
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0790341048921
UPC:
790341048921
EAN:
0790341048921
UNSPSC:
39121011
