Protection Type:
Surge Protection
PowerDsine PD-9501GO/48VDC Power Device
Part Number:
PD-9501GO/48VDC
Model:
Parts
PowerDsine Parts Accessory Model Overview
Products and parts from PowerDsine.

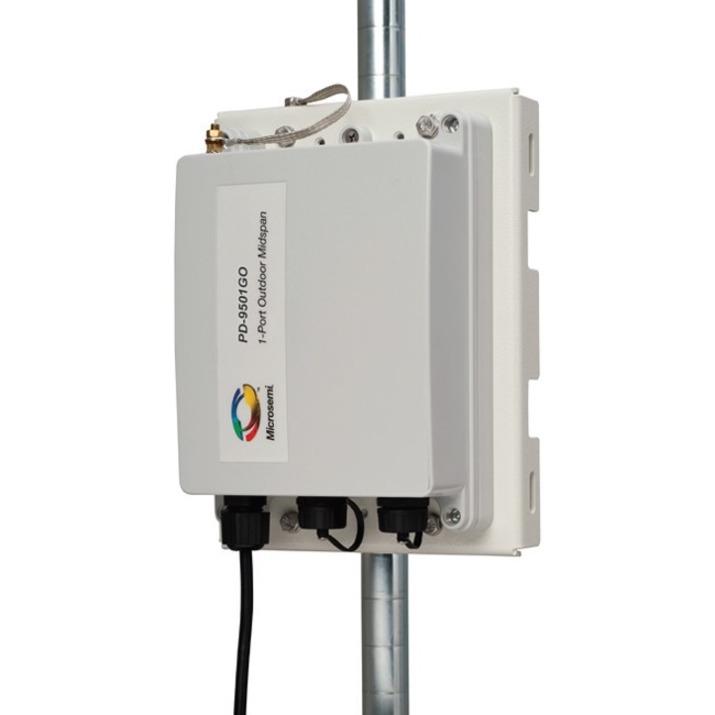

PowerDsine PD-9501GO/48VDC Power Device Overview
Microsemi's PD-9501GO/48VDC Power over Ethernet (PoE) single-port Midspan offers a cost effective, IEEE 802.3at compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
The PD-9501GO/48VDC also offers surge protection ensuring the indoor equipment is protected from outdoor surges.
The PD-9501GO/48VDC also offers surge protection ensuring the indoor equipment is protected from outdoor surges.
Technical Information
Power Description
Input Voltage:
48 V DC
Minimum Output Voltage:
50 V DC
Maximum Output Voltage:
57 V DC
Maximum Input Current:
2.20 A
Maximum Output Power:
60 W
Interfaces/Ports
Input Ports:
1 x Gigabit Ethernet
Physical Characteristics
Form Factor:
Wall Mountable
Mount Type:
Pole/Wall-mountable
Height:
8.4"
Width:
5.9"
Depth:
2.8"
Weight (Approximate):
1.65 lb
Miscellaneous
Certifications & Standards:
GS
- IEEE 802.3af (PoE, PoH Type1)
- IEEE 802.3at (PoE+ including 2-event
- GR-1089-CORE
- FCC Part 15, Class B
- EN 55022 Class B
- EN 55024
- EN61000-4-5 Class 5 (6kV CM)
- VCCI
- UL60950-1 & UL60950-22
Environmentally Friendly:
Yes
Country of Origin:
Philippines
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0844117001990
UPC:
844117001990
EAN:
0844117001990
UNSPSC:
39121004
Get help from a Barcoding Expert!
The PowerDsine PD-9501GO/48VDC Power Device is also known as
PDS-PD9501GO/48VDC
