Input Voltage:
48 V DC
Minimum Output Voltage:
54 V DC
Maximum Output Voltage:
57 V DC
Maximum Input Current:
2.20 A
Maximum Output Power:
60 W
PowerDsine Parts Accessory Model Overview
Products and parts from PowerDsine.

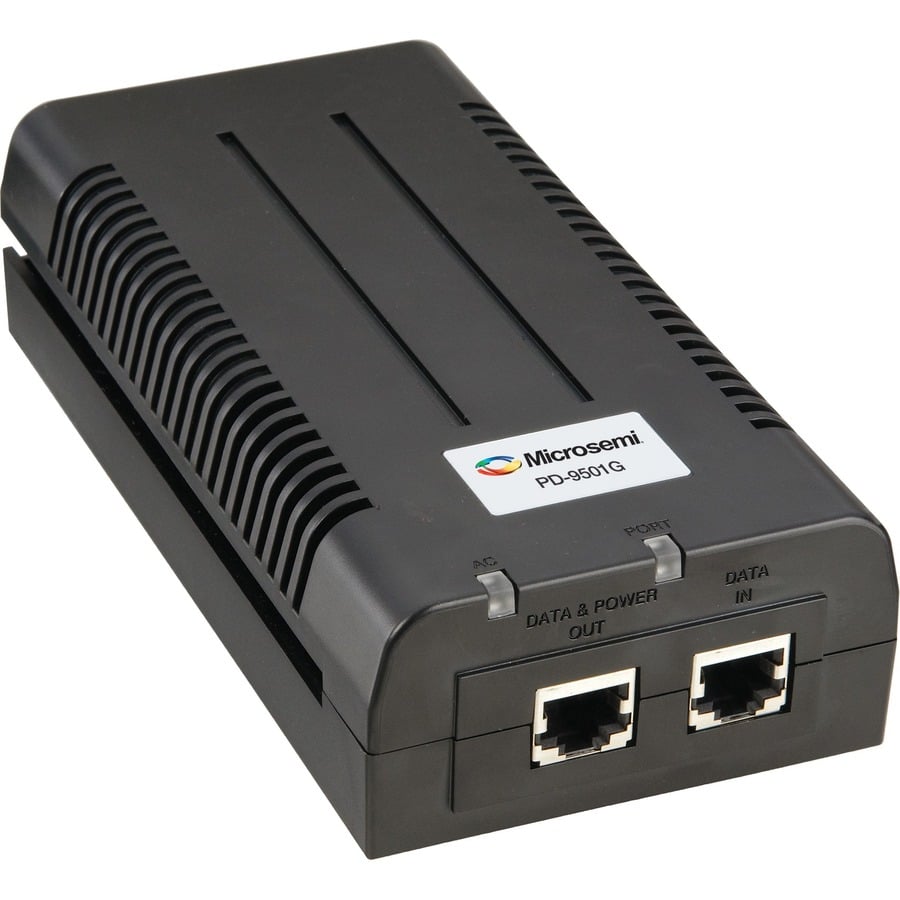

PowerDsine PD-9501G/48VDC Products Overview
The Microsemi PD-9501G is a single port solution for remote powering of current as well as emerging high power applications.
The Microsemi PD-9501G is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points.
It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as WI-MAX and wireless IEEE 802.11n access points.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Power Description
Interfaces/Ports
Input Ports:
1 x 10/100/1000Base-T
Output Ports:
1 x 10/100/1000Base-T
Physical Characteristics
Height:
2"
Width:
3.5"
Depth:
6.5"
Weight (Approximate):
881 lb
Miscellaneous
Compatibility:
- Access Points
- Pan-tilt-zoom (PTZ) Cameras
- Dome Cameras
- IP Video Phones
- Thin Clients
- High Power Ethernet end Terminals
- IP Cameras
Certifications & Standards:
- IEEE 802.11n
- IEEE 802.3at
- IEEE 802.3af
- CE
- FCC Part 15, Class B
- EN 55022 Class B (Emissions)
- EN 55024 (Immunity)
- VCCI
- UL/cUL Per EN 60950-1
- GS Mark Per EN 60950-1
Environmentally Friendly:
Yes
Country of Origin:
Philippines
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0844117001976, 0999566114767
UPC:
844117001976, 999566114767
EAN:
0844117001976, 0999566114767
UNSPSC:
39121004
Get help from a Barcoding Expert!
The PowerDsine PD-9501G/48VDC Products is also known as
PDS-PD9501G48VDC
