PowerDsine PD-6512G/AC/M

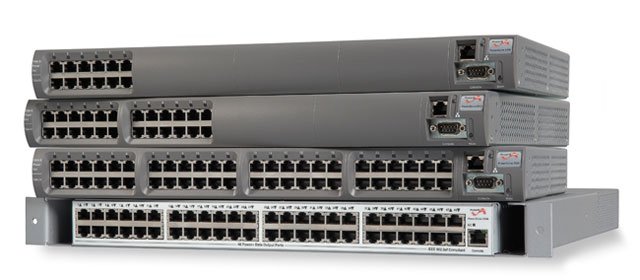

PowerDsine 6500 Power over Ethernet Midspan Family - 6512 (12-Port, POE Midspan, Managed, 10/100/1000BASET, AC Input)

The PowerDsine 6500 series sets a new standard for highly secure, remotely-managed and safe-to-use Power over Ethernet Midspans (PoE injectors). The PowerDsine 6500 series comprises 48, 24, 12 and 6-port models, making an even wider range of flexible Power over Ethernet installations possible. The PowerDsine 6500 family allows IP telephones, wireless LAN access points, security network cameras and many other types of data terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With PoE, data and power flow smoothly and safely over a single LAN cable with no interference.

Technical Information

  • Compatibility:
    • IP Telephones
    • Wireless LAN Access Points
    • Security Network Cameras
  • Input Voltage: 240 V AC
  • Output Power:
    • 15.40 W Per Port
    • 200 W Total
  • Output Voltage: 52 V DC

General Information

  • Product Type: PoE Injector Hub
  • Product Series: 6500G
  • Brand Name: PowerDsine
  • Manufacturer: Microsemi Corporation
  • Product Model: 6512G
  • Product Name: 12-Port PoE Midspan, 10/100/1000BaseT, AC Input w/Management

Physical Characteristics

  • Height: 1.8"
  • Width: 17.3"
  • Depth: 10.8"
  • Weight (Approximate): 8.80 lb

Interfaces/Ports

  • Output Ports: 12 x RJ-45 10/100/1000Base-T

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IEEE 802.3af Compliant
    • CE
    • Electromagnetic Emission & Immunity:
    • FCC Part 15, Class B with FTP cabling
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI
    • Safety Approvals:
    • UL/cUL Per EN 60950
    • GS Mark Per EN 60950
    • IEEE 802.3af Compliant
    • CE
    • Electromagnetic Emission & Immunity:
    • FCC Part 15, Class B with FTP cabling
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI
    • Safety Approvals:
    • UL/cUL Per EN 60950
    • GS Mark Per EN 60950
  • Country of Origin: Philippines
  • Compatibility:
    • IP Telephones
    • Wireless LAN Access Points
    • Security Network Cameras
  • Additional Information: Management: PowerView Pro

Power Description

  • Frequency: 47 Hz to 63 Hz
  • Input Current:
    • 4 A @ 110 V AC
    • 2 A @ 220 V AC
  • Input Voltage: 240 V AC
  • Output Power:
    • 15.40 W Per Port
    • 200 W Total
  • Output Voltage: 52 V DC

Warranty

  • Limited Warranty: Lifetime

Full specifications (PDF)



The PowerDsine PD-6512G/AC/M is also known as PDS-PD6512GACM or PD6512GACM .
