Polycom 2200-07500-001 Telecommunication Equipment

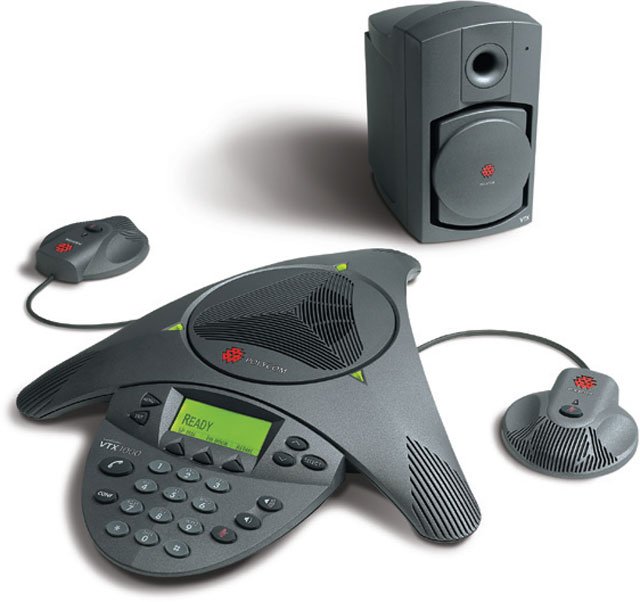

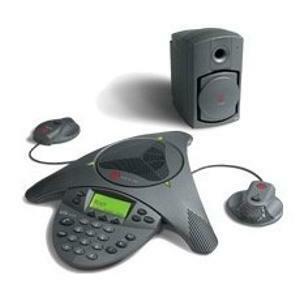

Polycom SoundStation VTX 1000 Telecommunication Equipment Model Overview
The Polycom SoundStation VTX 1000 is a groundbreaking analog conference phone designed for exceptional voice quality in larger meeting spaces. With its unique ability to automatically adapt to any environment, this conference phone ensures that all participants are heard clearly, even from up to 20 feet away. Thanks to Polycom's advanced HD Voice technology, conversations flow naturally without the interruptions typical of traditional speakerphones. Built with innovative features such as Dynamic Noise Reduction and full duplex capabilities, the SoundStation VTX 1000 transforms your conference calls into seamless, productive experiences.
Key Features
- Polycom HD Voice technology – Delivers crystal-clear voice quality over traditional analog systems.
- Unparalleled room coverage – Hear participants up to 20 feet away without raising your voice.
- Interference resistance – Enhanced clarity with minimal distractions from mobile devices.
- Maximum configuration flexibility – Adjustable settings for multiple applications, including external speaker connections.
- Easy integration – Compatible with Polycom audio and video solutions.
- Built-in investment protection – Update features remotely through standard phone lines.
Specifications
- Console Size: 14.5 x 12.25 x 2.5 in (36.8 x 31.1 x 6.4 cm)
- Weight: 1.75 lb. (0.8 kg)
- Power Supply: 22VDC nominal, powered by interface module
- Display: High-resolution backlit graphical LCD
- Microphone Coverage: 20-foot range; includes optional Expansion Microphones
- Audio Performance: 300 Hz to 3.3 kHz narrowband, 80 Hz to 7 kHz wideband
- Environmental Requirements: Operating temperature: 40° - 104°F (5° - 40°C)
- Warranty: 12 months
The SoundStation VTX 1000 enables you to speak naturally from 2 feet to 20 feet away from the microphone, so those on the remote end of the call can hear you clearly, leading to increased productivity, faster decision making, a higher competitive advantage, and much happier conference call participants.
As the worlds first high-fidelity, wideband conference phone, the SoundStation VTX 1000 covers the full range of the human speech spectrum, making every voice, word, and syllable crystal clear, you will think you were all in the same room! Its like going from black-and-white to color TV. And, you can download new software for additional features and functionality simply by dialing a number right from your SoundStation VTX 1000, that is built-in investment protection.
- Hold Button
- Mute Button
- On/Off Button
- Redial Button
- Volume Control
- 22 V DC
- 110 V AC
- 220 V AC
- SoundStation VTX 1000 EX
- Tabletop console with integrated display and keypad
- Power/network interface module
- Subwoofer
- User documentation (user guide, quick installation guide, registration card)
- 1 Power cable (console)
- 1 21-ft. (6.4m) console cable
- 1 7-ft. (2.1m) telco cable
- Acoustic Clarity Technology
- Unparalleled room coverage
- External Mics not Included
- Revolutionary voice quality
- Built-in investment protection
- Maximum configuration flexibility
- Easy to install/Easy to use
- 2 EX microphone connections
- independent input and output, bass/treble controls, and internal mic and speaker control for multiple uses and applications
- Noise reduction technology automatically minimizes PC, projector, and HVAC sounds
- Automatic mic selection only one mic is on at a time to remove in the well sound
- Subwoofer for audio extension down to 80 Hz, which provides clearer, lifelike sound
- Selectable, downloadable ring tones
Console Loudspeaker:
- Frequency response: 300 Hz to 3.3 kHz in narrowband mode, 80 Hz to 7 kHz in wideband mode
- Volume: adjustable to 89 dB (peak) volume at 0.5 meters
- Treble/Bass Controls Adjustment range: ± 6 dB
- Console Microphones: 3 cardioid microphones 80 Hz - 7 kHz
Sub-woofer:
- Frequency response: 80 to 300 Hz in wideband mode
- Power: Switchable 110/220 V, 50/60 Hz
- Network requirements: compatible with standard PSTN and PBX networks, analog or G.711 encoded
- Software download mode Download protocol: V.34 compatible Connection rates: to 33 Kbps, depending on line quality
- Download server: Polycom download server
Recommended Room Conditions:
- Reverberation time: <0.54 seconds Noise level: <48 dBa
Audio Enhancements:
- Automatic Gain Control (AGC)
- Dynamic Noise Reduction
- Gated microphones with intelligent microphone mixing
- 80 Hz to 7 kHz VTX wideband audio
- UL 1950
- CSA C22.2, no. 950
- EN6-950 IEC60950AS/NZS3260
- FCC (47 CFR Part 15) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR 22 Class B
- AS/NZS 3548 Class B
- VCCI Class B
- EN50224
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -RF or -IM indicates an Ingram Micro certified pre-owned product
