Full specifications (PDF)
Number of Analog Phone Lines:
1
Total Number of Phone Lines:
1

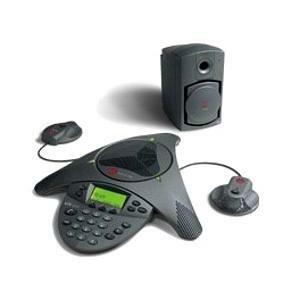

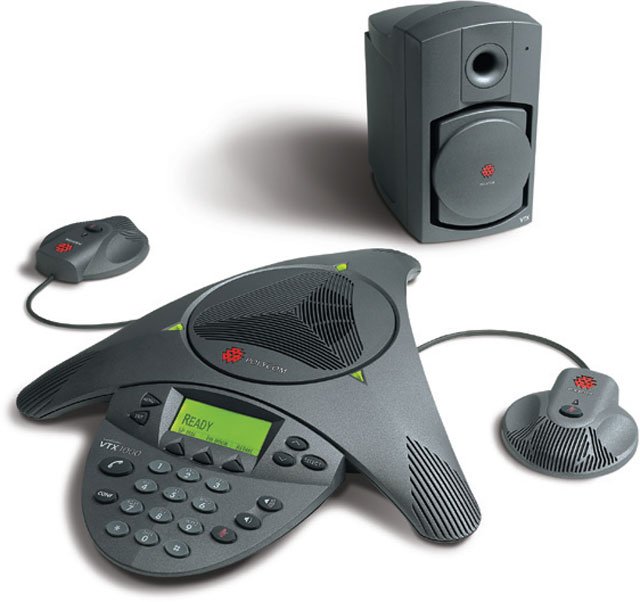

Polycom SoundStation VTX 1000 Telecommunication Equipment Model Overview
The Polycom SoundStation VTX 1000 is truly a leap forward in voice conferencing technology. It's the world's first conference phone that automatically adapts to each meeting environment, providing high fidelity voice clarity for all participants. With the SoundStation VTX 1000, conference call participants can speak at a normal, natural conversation level and be heard clearly from up to 20-feet away from the microphone, even in large conference rooms. And, when two SoundStation VTX 1000 conference phones connect on opposite ends of a call, the phones automatically connect in Polycom HD Voice, resulting in extraordinary fidelity. No wonder Polycom is the #1 choice in conference phones, worldwide.
Polycom 2200-07142-001 Telecommunication Equipment Overview
The Polycom Sound Station VTX 1000 with Acoustic Clarity Technology is truly a leap in voice conferencing technology. It s the world s first conference phone that automatically adapts to each meeting environment, providing high fidelity voice clarity for all participants. With the SoundStation VTX 1000, conference call participants can speak at a normal, natural conversation level and be heard clearly from two-feet to 20-feet away from the microphone even in large conference rooms. And, when two SoundStation VTX 1000 conference phones connect on a call, the phones automatically connect in VTX Wideband mode, resulting in extraordinary clarity. SoundStation VTX 1000 is the voice platform for the future. No wonder Polycom is the #1 choice in conference phones, worldwide.
Technical Information
Display & Graphics
Screen Type:
LCD
Backlight:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Phone Line (RJ-11):
Yes
Number of Phone Line (RJ-11) Ports:
1
Controls/Indicators
Buttons & Keys Type:
- Hold Button
- Mute Button
- On/Off Button
- Redial Button
- Volume Control
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Form Factor:
Desktop
Weight (Approximate):
1.75 lb
Miscellaneous
Package Contents:
- Tabletop console with integrated display and keypad
- Power/network interface module
- Sub woofer
- Extension microphones (2)
- User documentation (user guide, quick installation guide, registration card)
- Cables: 2 Power cables (console, subwoofer)
- 1 21-ft. (6.4m) console cable
- 1 7-ft. (2.1m) telco cable
- 2 7-ft. (2.1m) EX microphone cables
- 1 10-ft. (3m) RCA subwoofer cable
Additional Information:
- Built-in investment protection
- Acoustic Clarity Technology: Allows simultaneous natural conversation, the industry's best full duplex
- Revolutionary voice quality and clarity from up to 20 feet away
- Noise reduction technology automatically minimizes PC, projector, and HVAC sounds
- Automatic mic selection only one mic is on at a time to remove in the well sound
- Independent microphone, echo-cancelled channels that optimize sound
- Extension mics provide even greater room coverage for larger rooms
- Subwoofer for audio extension down to 80 Hz, which provides clearer lifelike sound
- Selectable, downloadable ring tones
Console loudspeaker:
- Frequency Response: 300 to 3300 Hz in narrow band mode, 260 to 7000 Hz in wideband mode
- Volume: adjustable to 89 dB (peak) volume at 0.5 meters
- Treble/bass controls: Adjustment range: ± 6 dB
Console Microphones:
- 3 cardioid microphones 80 Hz - 14 kHz
Sub-woofer:
- Frequency response: 80 to 300 Hz in wideband mode
- Power: switchable 110/220 V, 50/60 Hz (100 V for Japan) includes country-specific AC cable
Interface Module:
- Size 3.125 x 7.75 x 1.875 in (7.9 x 19.7 x 4.8 cm)
- Weight 0.75 lbs (0.34 kg)
Audio Enhancements:
- Automatic Gain Control (AGC)
- Dynamic Noise Reduction
- Gated microphones with intelligent microphone mixing
- 80 Hz to 7 kHz VTX wideband audio
Auxiliary Audio:
- Input Style: phono jack
- Function: switchable between Polycom wireless mic/AUDIO IN/OFF
- Softkey configurable setup menus
- Output Style: phono jack
- Function: switchable between subwoofer/ external PA/record out/OFF
- Softkey configurable setup menus
Telco Interface: Network connection: 2-wire RJ-11 analog PBX or PSTN interface
- Speech mode Bandwidth: 300 Hz to 3.3 kHz or 80 Hz to 7 kHz (point to- point)
- Network requirements: compatible with standard PSTN and PBX networks, analog or G.711 encoded
- Software Download protocol: V.34 compatible
- Connection rates: to 33 Kbps, depending on line quality
- Download server: Polycom download server
Recommended Room Conditions:
- Reverberation time: <0.54 seconds
- Noise level: <48 dBa
Certifications & Standards:
Safety:
- UL 1950
- CSA C22.2, no. 950
- EN6-950 - IEC60950AS/NZS3260 EMC:
- FCC (47 CFR Part 15) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR 22 Class B
- AS/NZS 3548 Class B
- VCCI Class B
- EN50224
Warranty
Additional Warranty Information:
Product does not ship from original manufacturer Product may not be eligible for original manufacturer warranty, rebates or programs Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems) Product ships from IMSourcing facility within 2-3 days or from stock Product may ship in non-standard packaging All returns processed directly from IMSourcing Product condition subject to availability Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted Where applicable, -IM indicates an Ingram Micro certified pre-owned product
Item Numbers
UNSPSC:
43191515
Questions? Get help from a
Printer Expert!
Printer Expert!
The Polycom 2200-07142-001 Telecommunication Equipment is also known as
POL-220007142001
