Full specifications (PDF)
ITU-T Recommendation:
- H.323
- SIP
- H.235

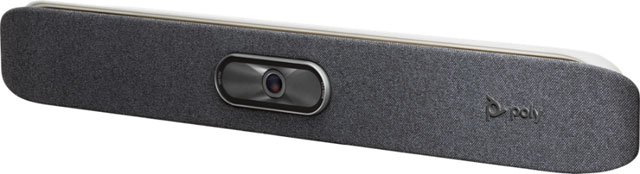

Poly Studio X30 Video Conferencing Equipment Model Overview
The Poly Studio X30 is an all-in-one video bar for huddle and small rooms. It's radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. And wireless content sharing lets users collaborate from their devices without the need for cables or pucks.

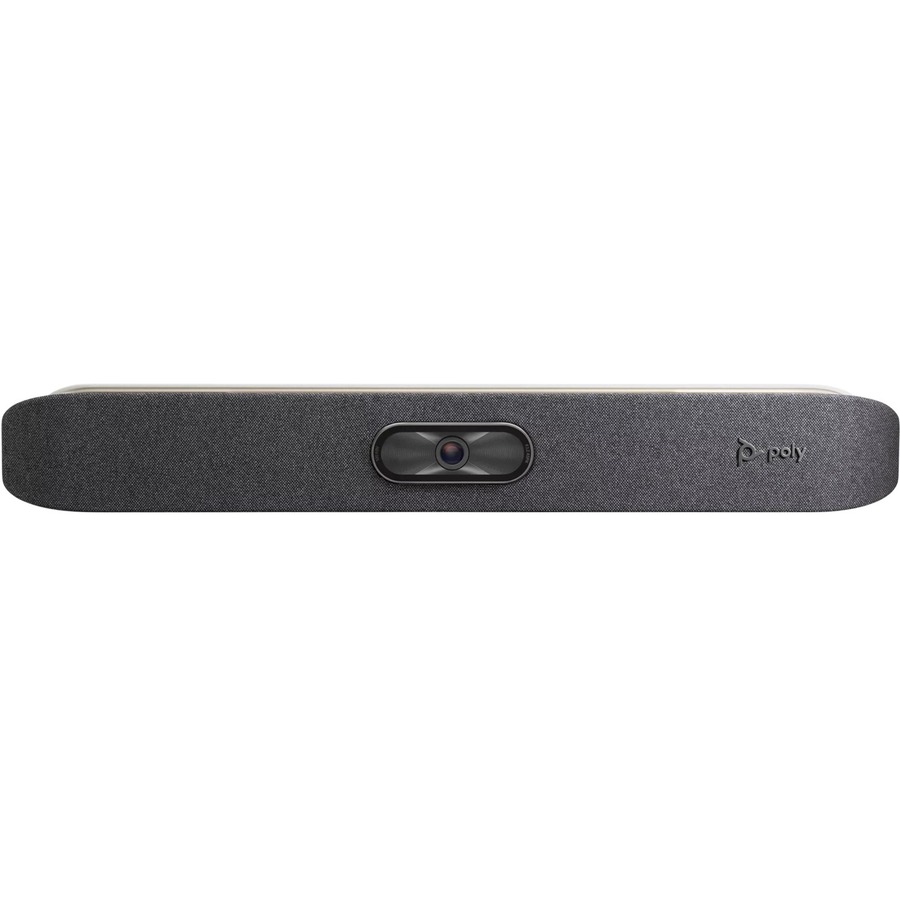

Poly G2200-85980-001 Video Conferencing Equipment Overview
Just because your meetings are in small spaces doesn't mean those meetings aren't important.
Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It's radically simple to use with support for leading cloud video services built right in-no PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone array and acoustic chamber design. Built-in, wireless content sharing lets users share from their devices without the need for cables or pucks. Setup, management, and maintenance are all streamlined, too. Say hello to lower IT costs.
Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It's radically simple to use with support for leading cloud video services built right in-no PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone array and acoustic chamber design. Built-in, wireless content sharing lets users share from their devices without the need for cables or pucks. Setup, management, and maintenance are all streamlined, too. Say hello to lower IT costs.
- Ideal for rooms of up to six participants
- Compact, lightweight design easily fits on top of display
- Affordable price delivers excellent huddle room performance without breaking the bank
Technical Information
Maximum Image Resolution:
3840 x 2160
Video
Graphics Modes (Live):
4K UHD
Graphics Modes (Content):
4K UHD
Maximum Video Resolution (Live):
3840 x 2160
Maximum Video Resolution (Content):
3840 x 2160
Maximum Frame Rate:
30 fps
Video Encoding:
- H.264
- H.264 High Profile
- H.265
- H.239
Audio
Microphone Form Factor:
Internal
Audio Encoding:
- AAC-LD
- G.719
- G.722.1C
- G.722
- G.722.1
- G.711
- G.728
- G.729a
- Siren 22
- Siren 14
Network & Communication
Network Technology:
10/100/1000Base-T
Ethernet Technology:
Gigabit Ethernet
Wireless Specifications
Wireless LAN:
Yes
Interfaces/Ports
HDMI In:
Yes
HDMI Out:
Yes
Video Input:
Yes
Video Output:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
2
Number of HDMI Outputs:
2
Number of Video In:
1
Number of Video Out:
3
Number of Audio Line In:
7
Number of Audio Line Out:
2
Physical Characteristics
Height:
2.5"
Width:
17.4"
Depth:
2.4"
Weight (Approximate):
1.61 lb
Item Numbers
GTIN:
0610807899327
UPC:
610807899327
EAN:
0610807899327
UNSPSC:
45111902
