Full specifications (PDF)
ITU-T Recommendation:
- H.323
- SIP
- H.235

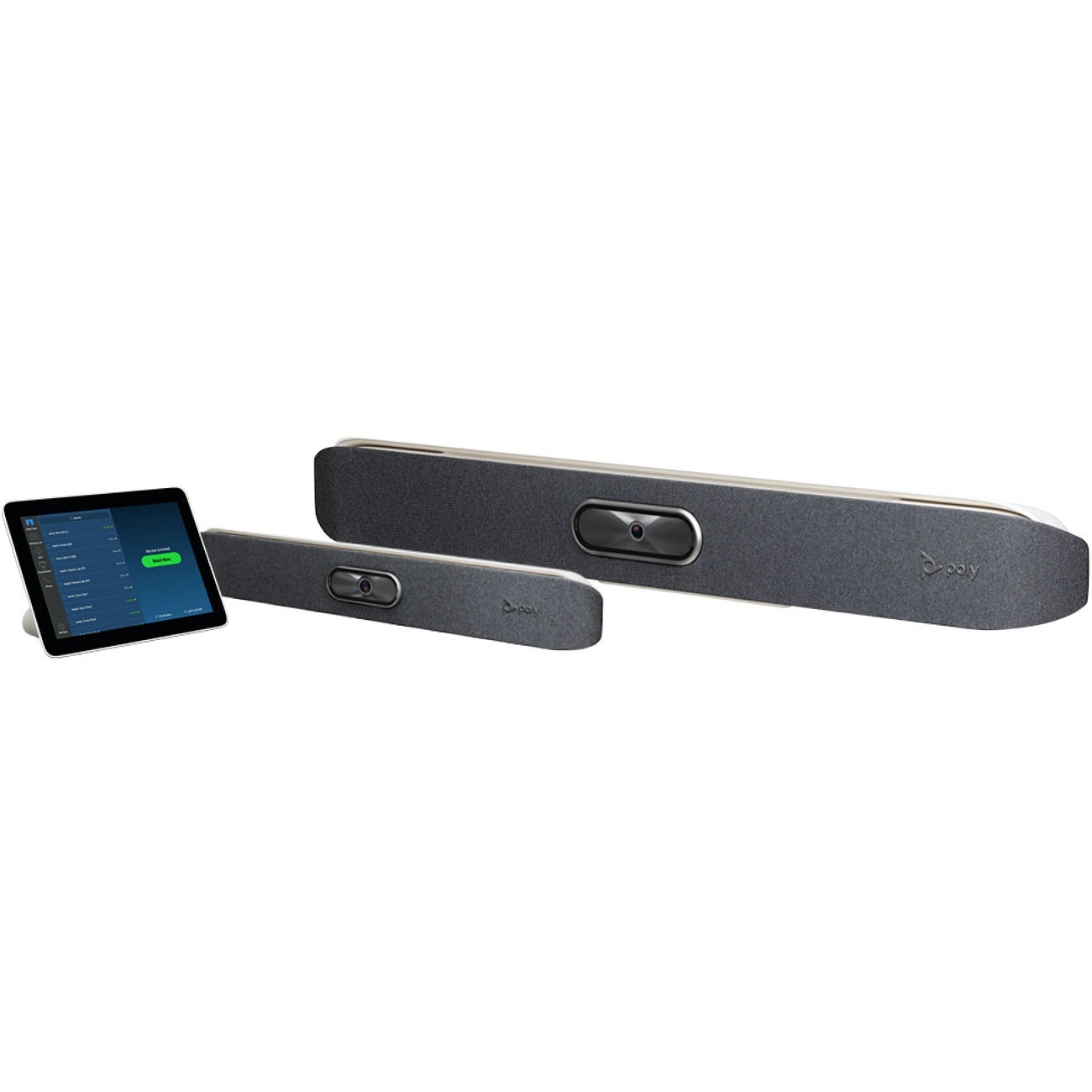

Poly 2200-86260-001 Video Conferencing Equipment
Part Number:
2200-86260-001
Model:
Studio X30
Technical Information
Maximum Image Resolution:
3840 x 2160
Video
Graphics Modes (Live):
4K UHD
Graphics Modes (Content):
4K UHD
Maximum Video Resolution (Live):
3840 x 2160
Maximum Video Resolution (Content):
3840 x 2160
Maximum Frame Rate:
30 fps
Video Encoding:
- H.264
- H.264 High Profile
- H.265
- H.239
Audio
Microphone Form Factor:
Internal
Audio Encoding:
- AAC-LD
- G.719
- G.722.1C
- G.722
- G.722.1
- G.711
- G.728
- G.729a
- Siren 22
- Siren 14
Network & Communication
Network Technology:
10/100/1000Base-T
Ethernet Technology:
Gigabit Ethernet
Wireless Specifications
Wireless LAN:
Yes
Interfaces/Ports
HDMI In:
Yes
HDMI Out:
Yes
Video Input:
Yes
Video Output:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
2
Number of HDMI Outputs:
2
Number of Video In:
1
Number of Video Out:
3
Number of Audio Line In:
7
Number of Audio Line Out:
2
Physical Characteristics
Height:
2.5"
Width:
17.4"
Depth:
2.4"
Weight (Approximate):
1.61 lb
Miscellaneous
Package Contents:
- Studio X X30 Video Conference Equipment
- Cable bundle
- Monitor clamp
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0610807895152
UPC:
610807895152
EAN:
0610807895152
UNSPSC:
45111902
