Bezel Width:
0.59"
Planar 998-2656-00 Digital Signage Display
Part Number:
998-2656-00
Model:
Parts
Planar Parts Accessory Model Overview
Products and parts from Planar.

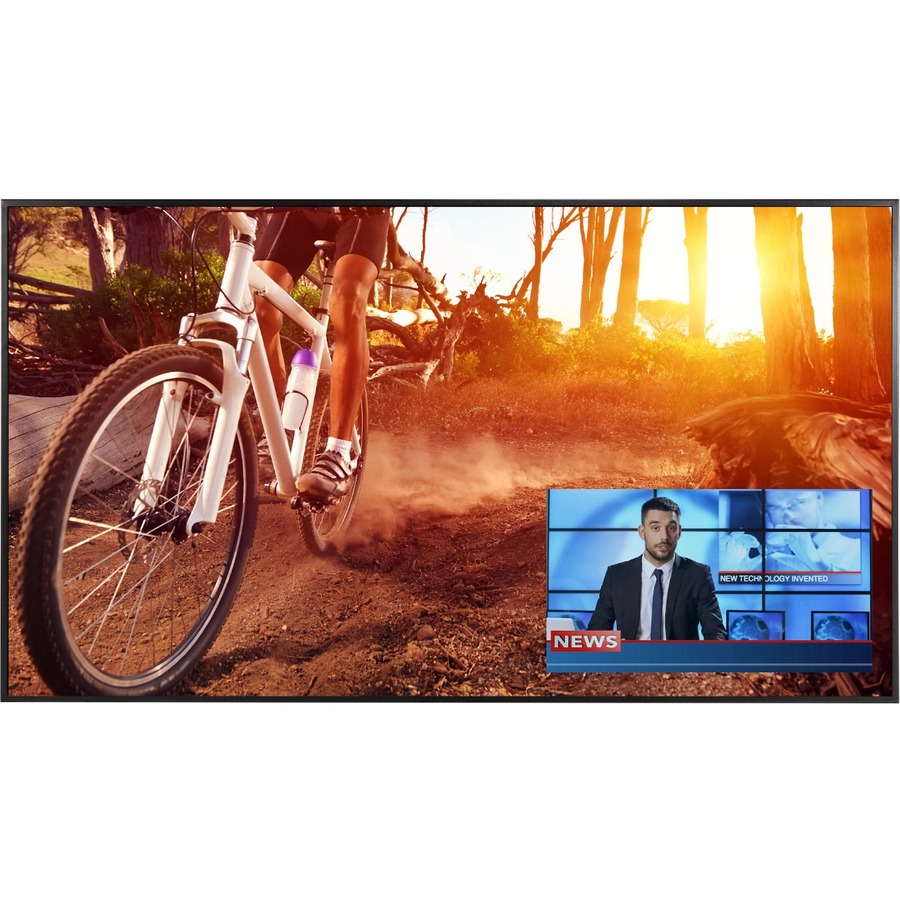

Planar 998-2656-00 Digital Signage Display Overview
4K LCD Touch Display
The Planar® URP85-ERO-T is an " 4K (3840 x 2160) LCD touch screen display with enterprise-level features ideal for collaborative and interactive environments such as conference rooms or huddle spaces and applications like way-finding, product catalogs and digital signage. It features Planar® ERO-LCD™ protective glass and supports up to 20 simultaneous touch points. The 24x7 solution lets users view up to four sources simultaneously and enables administrators to receive remote monitoring email alerts if a designated events occur.
Technical Information
Display & Graphics
Number of Screens:
1
Viewable Screen Size:
85"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Display Resolution:
3840 x 2160
Pixel Pitch:
19.2 mil
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Dynamic Contrast Ratio:
5,000:1
Color Depth:
10-bit
Brightness:
450 Nit
Color Gamut:
72% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Software
Operating System:
- Windows 7
- Windows 8
- Windows 10
- Mac OS X
- Linux
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
44"
Width:
76.2"
Depth:
4.1"
Weight (Approximate):
181 lb
Miscellaneous
Package Contents:
- UltraRes URP85-ERO-T Digital Signage Display
- US power cord - 1.8m
- HDMI cable 2m
- USB (A to B) cable
- IR sensor
- Remote control
- TouchMark license key (one time download)
- QuickStart Guide
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
Advance Exchange
Item Numbers
GTIN:
0810689009221
UPC:
810689009221
EAN:
0810689009221
UNSPSC:
43211902
